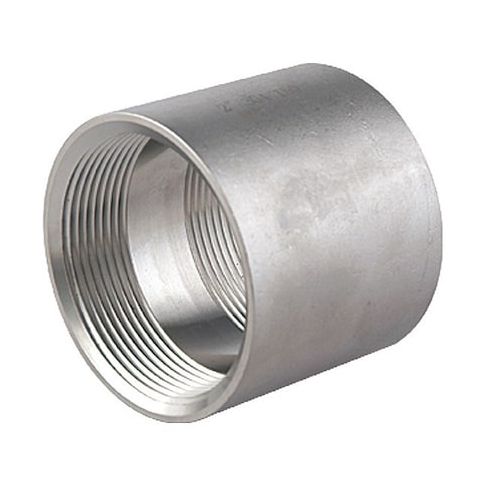

1-1/2" FNPT 304 SS Coupling MPN:40FC111N112
The ZORO SELECT - 40FC111N112 is a versatile stainless steel coupling ideal for joining pipes or tubes in various applications. Constructed from 304 stainless steel, this coupling features female NPT threaded connections on both ends, suitable for 1 1/2-inch nominal pipe diameter. It's perfect for conveying air, non-potable water, oil, potable water, and steam in systems with Class 150 pressure ratings. The coupling's silver finish and low lead compliance make it suitable for potable water use. Its compact design and durable construction ensure reliable performance in a wide range of industrial and commercial settings, including HVAC, plumbing, and process piping systems.
Top product features:
- Constructed from 304 stainless steel with conformity to ASTM-A-351 and MSS-SP-114 Class 150 pressure ratings.
- Features female NPT threaded connections on both ends, each sized for 1 1/2-inch nominal pipe diameter.
- Rated for Class 150 pressure and a maximum operating pressure of 300 psi.
Top product applications:
- For use with air
- For use with non-potable water
- For use with potable water
The ZORO SELECT - 40FC111N112 is a stainless steel coupling for joining two pipes or tubes in a straight-line configuration. Constructed from 304 stainless steel, this coupling features female NPT threaded connections on both ends, each sized for 1 1/2-inch nominal pipe diameter. Rated for Class 150 pressure and a maximum operating pressure of 300 psi, it is suitable for conveying air, non-potable water, oil, potable water, and steam. The fitting does not include any pre-applied thread sealant or seals and has a silver finish corresponding to the stainless steel material.
Key Features:
- - Material: 304 Stainless Steel with conformity to ASTM-A-351 and MSS-SP-114 Class 150 pressure ratings
- - Connection Type: Female NPT threaded connections on both ends (Side A and Side B)
- - Nominal Pipe Size: 1 1/2 inches for both ends with pipe threading size 11
- - Pressure Rating: Class 150 with a maximum operating pressure of 300 psi
- - Length: 53.9 mm overall
- - Applications: For use with air, non-potable water, potable water, oil, and steam systems within the rated Class 150 (maximum 300 psi) pressure rating
- - Color: Silver
- - Does not include pre-applied thread sealant or a seal
- - Meets ASME B1.20.1 thread standards and is low lead compliant for potable water use
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 2.20
- Package Height: 2.10
- Package Weight: 0.68
