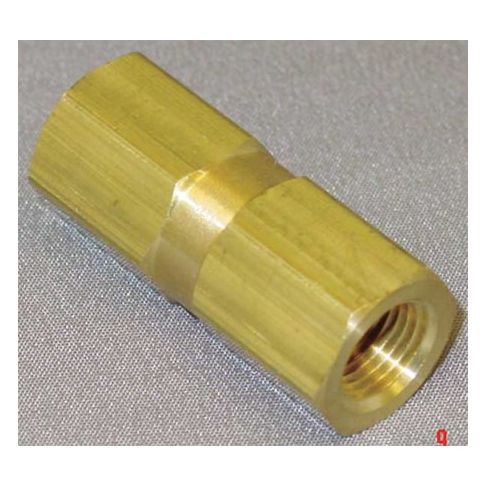

1/8" FNPT Brass Piston Spring Check Valve MPN:CHK BRS 215-2F2F-F
Free Shipping
In Stock
This 1/8in FNPT Brass Piston Spring Check Valve from GoVets Select is a reliable and efficient solution for various applications, including water treatment, chemical processing, and HVAC systems. Its single-flow design and inline piston mechanism ensure smooth operation and minimal pressure drop. With a cracking pressure of 1 psi and a maximum water pressure of 500 psi, this valve can handle a wide range of pressures. Its corrosion-resistant brass body and stainless steel spring make it suitable for use in harsh environments. Ideal for use in horizontal or vertical orientations, this valve is a great choice for applications requiring precise control and durability.
Top product features:
- It has a cracking pressure of 1 psi
- It has a full flow design
- It is made with a stainless steel spring
Top product applications:
- Industrial Process Control Systems
- Water Treatment Systems
- Steam Power Generation Systems
GoVets Select 215 Series piston spring check valve for inline, single-flow air and fluid service. It uses a spring-loaded brass piston to allow flow in one direction and close when flow slows or reverses. The valve is intended for use in piping systems requiring single-direction flow. It features a brass body with 1/8 in FNPT female connections on both ends, a 1 psi cracking pressure, and horizontal or vertical mounting.
Key Features:
- Valve type: Piston spring check valve with inline piston design
- Body material: Brass
- Check mechanism: Brass piston with stainless steel spring
- Connection size and type: 1/8 in FNPT x FNPT, female x female
- Flow design: Single flow
- full flow
- Cracking pressure: 1 psi
- Media: Air and fluids
- Pressure rating: 500 psi maximum operating/water pressure
- Temperature range: -20 degrees F to 180 degrees F
- Seal material: Viton/FKM
- Seat material: Brass
- Mounting orientation: Horizontal or vertical
- Cv: 0.6
- Overall length: 1.38 in
- Standards: UL, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 4.00
- Package Height: 0.60
- Package Weight: 0.39
