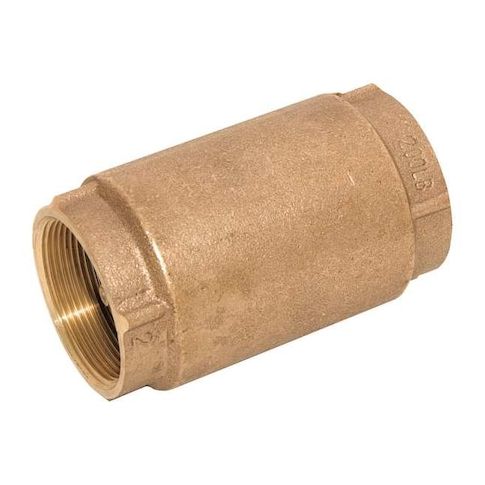

1-1/2" NPT Bronze Spring Check Valve MPN:6AJY5
Free Shipping
In Stock
This 1-1/2in NPT Bronze Spring Check Valve is a reliable and durable solution for general-purpose applications. Its inline spring design and 304 stainless steel spring ensure consistent performance and long-lasting operation. With a cracking pressure of 4.3 psi and a maximum water pressure of 200 psi, this valve is suitable for various applications, including industrial and commercial use. Its horizontal and vertical mounting orientation makes it easy to install in a variety of settings. Its compact size and lightweight design make it ideal for use in tight spaces, and its maximum temperature rating of 250°F ensures reliable operation in a range of environments.
Top product features:
- 1-1/2in NPT Bronze Spring Check Valve has a single flow design that allows fluid to flow in one direction while preventing backflow.
- The valve is designed with an inline spring mechanism that provides a consistent cracking pressure of 4.3 psi.
- The valve is made with 304 stainless steel spring material that ensures durability and resistance to corrosion.
Top product applications:
- General Purpose
- General Service
- General Industry
GoVets Select spring check valve with an inline, spring-loaded design for general-purpose water service. It features a bronze body with 1-1/2 in FNPT x FNPT connections and a 304 stainless steel internal check mechanism and spring configured for one-direction flow and closure when flow stops or reverses. The valve can be mounted horizontally or vertically, with flow up only in vertical installations.
Key Features:
- Valve type: Spring-loaded, inline check valve.
- Body material: Bronze.
- Internal components: 304 stainless steel check mechanism and spring.
- Connection size and type: 1-1/2 in FNPT x FNPT with female NPT connections on both ends.
- Cracking pressure: 4.3 psi.
- Flow rating: 25 gpm.
- Maximum water pressure: 200 psi.
- Maximum operating temperature: 250 degrees F.
- Mounting position: Horizontal or vertical
- vertical installation is flow up only.
- Dimensions: 4 in overall length, 4 1/32 in overall height, 2 23/64 in width.
- Standards: ANSI B2.11, MSS SP-80.
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.00
- Package Width: 4.60
- Package Height: 2.80
- Package Weight: 8.25
