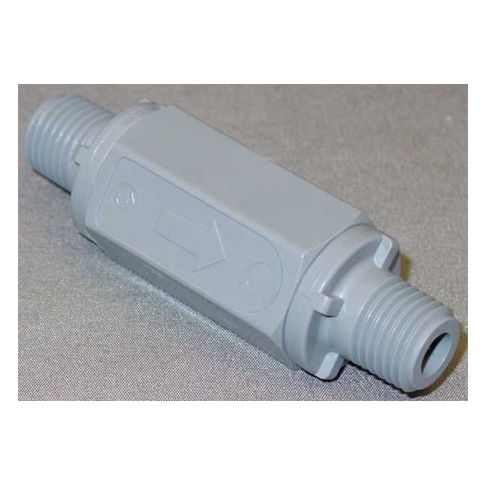

1/4" MNPT Gray PVC Ball Cone Spring Check Valve MPN:PVC CHK 426-4M4M-B
Free Shipping
In Stock
This 1/4in MNPT Gray PVC Ball Cone Spring Check Valve is designed for use in a variety of applications where a reliable and efficient check valve is needed. Its single flow design and inline ball cone mechanism make it ideal for use in systems where backflow prevention is crucial. The valve's PVC body and stainless steel spring ensure durability and resistance to corrosion, while its 1 psi cracking pressure provides reliable shut-off. Suitable for use in water systems, this valve is also resistant to temperatures as low as -20°F and as high as 140°F, making it a versatile and reliable solution for many applications.
Top product features:
- The valve is designed with a ball cone mechanism for inline installation.
- The valve has a spring-loaded design with a stainless steel spring for reliable operation.
- The valve allows for full flow in both directions, with a cracking pressure of 1 psi.
Top product applications:
- Drainback systems for residential and commercial water heaters
- Plumbing systems for RVs and boats
- High-pressure water circulation systems
Zoro Select 426 series ball cone spring check valve for one-way flow applications in compatible general-purpose chemical systems. This inline check valve features a PVC body and seat, a ball check mechanism with stainless steel components, a Hastelloy spring, a Buna-N seal, and 1/4 in male NPT connections on both ends. It is rated for horizontal or vertical mounting and has a manufacturer-listed full-flow specification and 1 psi cracking pressure.
Key Features:
- Valve type: Ball cone spring check valve with inline body design
- Body and seat material: PVC
- Check mechanism: Ball with stainless steel components
- Spring material: Hastelloy
- Seal material: Buna-N
- Connection type: 1/4 in MNPT x MNPT
- Pressure rating: 125 psi maximum operating/water pressure
- Temperature range: -20 degrees F to 140 degrees F
- Cracking pressure: 1 psi
- Mounting orientation: Horizontal or vertical
- Full-flow specification: Yes
- Standards: NSF 42
- Overall size: 2.99 in L x 1 in H x 1 in W
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.10
- Package Height: 1.10
- Package Weight: 0.06
