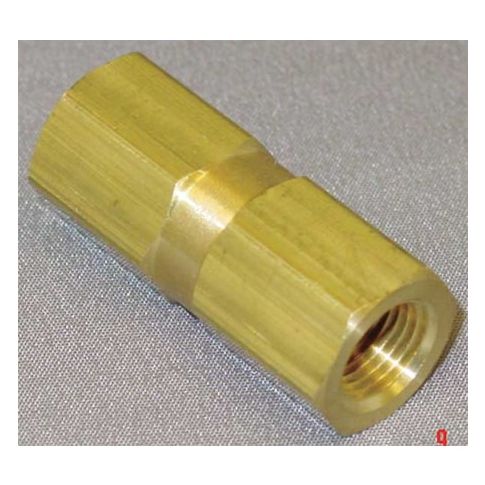

1/8" FNPT Brass Piston Spring Check Valve MPN:CHK BRS 215-2F2F-B
Free Shipping
In Stock
This 1/8in FNPT Brass Piston Spring Check Valve is a reliable and efficient solution for various applications, including hydraulic systems, water treatment, and chemical processing. Its inline piston design ensures full flow and quick response to changing pressures, while its cracking pressure of 1 psi minimizes energy loss. The valve's brass body and stainless steel spring ensure durability and resistance to corrosion, with a maximum temperature rating of 180°F and a maximum water pressure rating of 500 psi. Ideal for use in horizontal or vertical orientations, this valve is a great choice for applications requiring precise control and reliability.
Top product features:
- It has a cracking pressure of 1 psi, allowing for precise control over flow.
- It is designed with a full flow mechanism, ensuring that fluid can pass through the valve without restriction.
- It has a stainless steel spring, providing durability and resistance to corrosion.
Top product applications:
- Steam Radiators
- Automotive Fuel Systems
- Medical Equipment
GoVets Select 215 series piston spring check valve with a brass body and 1/8 in FNPT x FNPT female connections. It uses a spring-loaded brass piston and is intended for one-way flow control with compatible air and fluid media, with a 1 psi cracking pressure. The valve is rated for horizontal or vertical mounting and features a Cv 0.6 flow capacity and 1.38 in overall length.
Key Features:
- - Valve type: Piston spring check valve with inline piston design
- - Body material: Brass
- - Check mechanism: Brass piston with stainless steel spring
- - Connection size and type: 1/8 in FNPT x FNPT, female x female
- - Media compatibility: Air and fluid media
- - Cracking pressure: 1 psi
- - Pressure rating: 500 psi maximum operating pressure
- 500 psi maximum water pressure
- - Temperature range: -20 degrees F to 180 degrees F
- - Seal material: Buna-N
- - Seat material: Brass
- - Mounting orientation: Horizontal or vertical
- - Flow capacity: Cv 0.6
- - Overall length: 1.38 in
- - Standards: UL, UR
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 2.00
- Package Height: 1.00
- Package Weight: 0.40
