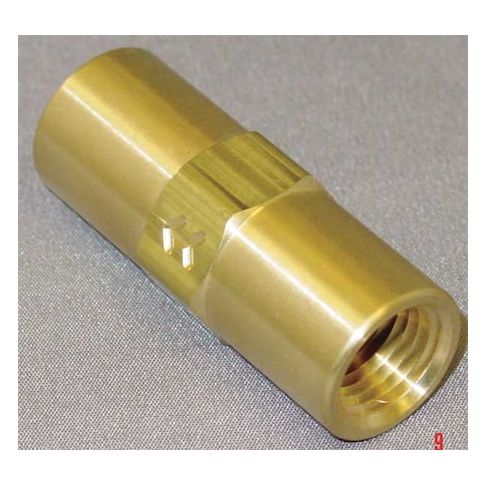

1/4" FNPT Brass Piston Spring Check Valve MPN:CHK BRS 415-4F4F-B
Free Shipping
In Stock
The GoVets Select 1/4in FNPT Brass Piston Spring Check Valve is a reliable and efficient solution for various applications. Use it to prevent backflow in plumbing systems, HVAC, and industrial processes. The valve's single piston design and inline configuration ensure smooth flow and minimize pressure drops. Its brass body and stainless steel spring provide durability and resistance to corrosion. The valve operates within a temperature range of -20°F to 180°F and can withstand up to 500 psi of water pressure. Ideal for use in commercial and residential settings, this check valve is a cost-effective and reliable choice for a wide range of applications.
Top product features:
- Piston spring design for reliable shut-off
- Buna-N seal for long-lasting fluid tightness
- Stainless steel spring for high-temperature resistance
Top product applications:
- Pressure Relief Valves in Industrial Systems
- Steam Traps in HVAC Systems
- Pneumatic Systems in Manufacturing Machinery
ZORO SELECT 415 series 1/4 in. FNPT brass piston spring check valve for general-purpose air and fluid service. This inline, single-flow check valve uses a spring-loaded piston and is intended to permit flow in one direction and restrict reverse flow. It is designed for horizontal or vertical mounting and has a Cv 1.2 flow capacity for inline check-valve applications involving one-direction flow.
Key Features:
- Valve type: Piston spring check valve with inline piston mechanism and single-flow design
- Body and internal materials: Brass body, brass check mechanism, brass seat, stainless steel spring, and Buna-N seal
- Connection size and type: 1/4 in. female NPT x female NPT
- Cracking pressure: 1 psi
- Pressure rating: 500 psi maximum operating pressure and 500 psi maximum water pressure
- Temperature range: -20°F to 180°F
- Mounting orientation: Horizontal or vertical
- Flow capacity: Cv 1.2
- Hex size: 11/16 in.
- Standards: UL, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 2.50
- Package Height: 0.80
- Package Weight: 0.60
