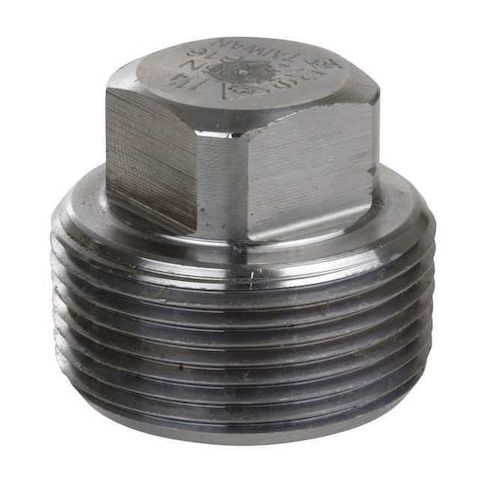

Square Head Plug, 1/4 in MNPT, 316L Stainless Steel, Class 3000, 11/16 in Length MPN:4307002152
Square Head Plug, 1/4 in MNPT, 316L Stainless Steel, Class 3000, 11/16 in Length
The ZORO SELECT - 4307002152 is a 1/4-inch nominal pipe size stainless steel square head plug configured to close the end of a threaded pipe, coupling, or fitting. It has corrosion resistance inherent to 316L stainless steel. 316L stainless steel construction with a 1/4-inch square drive style head provides a flat wrenching surface for installation and removal. It is rated for a maximum pressure of 3000 psi at 100°F and a maximum steam pressure of 2810 psi at 350°F, and it conforms to ASME and ASTM standards for thread dimensions and material quality.
Key Features:
- - Material: 316L Stainless Steel
- - Shape and Type: Square Head Plug with 316L stainless steel construction
- - Nominal Pipe Size: 1/4 inch
- - Pressure Rating: Class 3000
- Maximum Pressure 3000 psi @ 100°F
- - Maximum Steam Pressure: 2810 psi @ 350°F
- - Fitting Connection Type: Male National Pipe Thread (MNPT)
- - Standards: ASME B1.20.1 (NPT threads), ASTM A182 (material), ASME B16.11 (dimensions)
- - Overall Length: 11/16 inch
- Outside Diameter: 35/64 inch
- - Does not include pre-applied thread sealant or seal
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 2.70
- Package Height: 0.60
- Package Weight: 0.85
Product info last updated on March 1, 2026 9:39pm UTC
