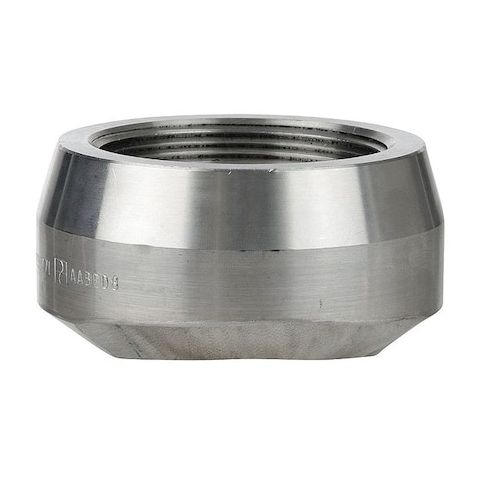

Threaded Outlet, 316 Stainless Steel, 1/4 in FNPT x 3/8 in Socket, Class 3000 MPN:4307003600
This stainless steel threaded outlet pipe fitting is designed for use in high-pressure applications, providing a secure and leak-tight connection for pipes, valves, gauges, instruments, or plugs without welding. Made from 316 stainless steel, it offers excellent corrosion resistance and durability. With a maximum pressure rating of 3000 psi and a maximum steam pressure rating of 2810 psi at 350 °F, it meets MSS SP-97 Class 3000 specifications. Suitable for use in industries such as oil and gas, chemical processing, and power generation, this fitting ensures reliable and safe operation in demanding environments.
Top product features:
- 316 Stainless Steel construction
- Female NPT connection with a 1/4 in nominal pipe size
- Female socket connection with a 3/8 in nominal pipe size
Top product applications:
- Attaching pipes to valves, gauges, instruments, or plugs without welding
- Screw-type branch connection for steam systems
- High-pressure applications requiring a pressure-tight branch connection
The ZORO SELECT - 4307003600 is a stainless steel threaded outlet pipe fitting made from 316 stainless steel. It features a female NPT connection with a 1/4 in nominal pipe size on Side A and a female socket connection with a 3/8 in nominal pipe size on Side B. Classified as Class 3000, this fitting provides a pressure-tight branch connection for attaching pipes, valves, gauges, instruments, or plugs without welding, in accordance with MSS SP-97 Class 3000 specifications. It has a maximum pressure rating of 3000 psi and a maximum steam pressure rating of 2810 psi at 350 °F, conforming to MSS SP-97 standards. Key Features:
- - Material: 316 Stainless Steel.
- - Connection types: Female NPT on Side A (1/4 in), Female Socket on Side B (3/8 in).
- - Pressure Class: Class 3000, rated for up to 3000 psi.
- - Maximum Steam Pressure: 2810 psi @ 350 °F.
- - Fitting shape: Outlet, specifically a threaded outlet for screw-type branch connection.
- - Color: Silver.
- - No pre-applied thread sealant or included seal.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.30
- Package Width: 1.30
- Package Height: 0.80
- Package Weight: 0.10
