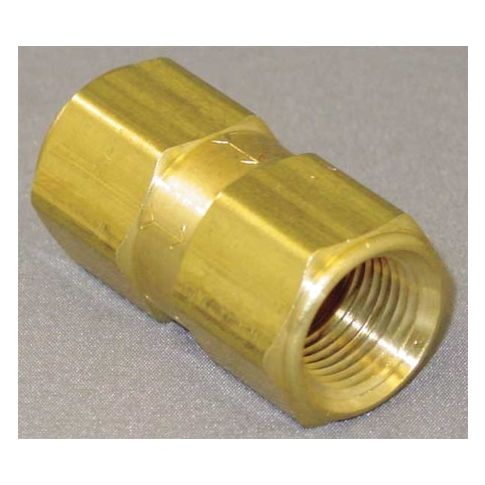

3/8" FNPT Brass Poppet Spring Check Valve MPN:CHK BRS 650-6F6F-F
Free Shipping
In Stock
This 3/8in FNPT Brass Poppet Spring Check Valve is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical orientations, it features a single flow design and inline poppet mechanism, ensuring smooth operation and minimizing pressure drops. Constructed from high-quality brass and stainless steel components, this valve withstands temperatures from -20°F to 180°F and pressures up to 1,200 psi. Ideal for use in water-based systems, it also offers excellent resistance to corrosion and wear. Its compact design and versatility make it a valuable addition to plumbing, HVAC, and industrial applications.
Top product features:
- Inline flow design allows for unobstructed fluid passage when the valve is open.
- Poppet mechanism provides a positive shut-off when the valve is closed.
- Stainless steel spring ensures consistent cracking pressure over a wide temperature range.
Top product applications:
- Water Supply Systems
- Steam Power Generation Systems
- Hydraulic Systems
GoVets Select 650 series poppet spring check valve intended for general purpose water service. This inline valve uses a spring-loaded brass poppet and is configured for single-direction flow and reverse-flow checking in compatible water line applications. The brass body has 3/8 in FNPT female connections on both ends and can be mounted in horizontal or vertical positions.
Key Features:
- Valve type: Poppet spring check valve with inline poppet body design
- Body and internal materials: Brass body, brass check mechanism, and brass seat
- Connection size and type: 3/8 in FNPT x FNPT, female x female
- Cracking pressure: 1 psi
- Pressure rating: 1200 psi maximum water pressure
- 1200 psi maximum operating pressure
- Temperature range: -20 degrees F minimum to 180 degrees F maximum operating temperature
- Seal and spring materials: Viton seal and stainless steel spring
- Flow and mounting: Single-flow design for horizontal or vertical mounting
- Dimensions: 1 3/4 in overall length, 7/8 in overall height, 7/8 in overall width, 7/8 in hex size
- Standards: UL, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 3.00
- Package Height: 2.00
- Package Weight: 0.98
