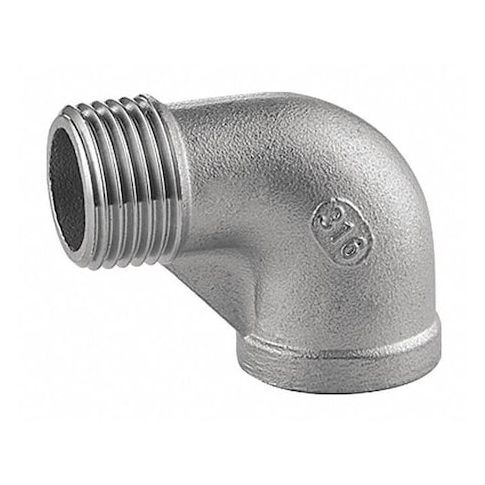

3/8" MNPT x FNPT 316 SS Street Elbow, Max. Pressure: 300 psi MPN:60SE113N038
The 3/8in MNPT x FNPT 316 SS Street Elbow is a versatile and reliable fitting designed to change the direction of flow in piping systems. Made from high-quality 316 stainless steel, this fitting is ideal for use in Class 150 piping systems where high pressure and corrosion resistance are required. With a maximum operating pressure of 300 psi and maximum steam pressure of 150 psi, it is suitable for a wide range of applications including chemical processing, oil and gas production, and HVAC systems. Its compact design and easy installation make it a great choice for any piping project.
Top product features:
- 316 Stainless Steel construction
- Direct connection between a pipe and another fitting without requiring a short nipple
- Class 150 pressure rating with a maximum operating pressure of 300 psi
Top product applications:
- Piping systems for residential or commercial water supply lines
- Industrial piping systems for chemical processing or oil and gas applications
- High-pressure steam systems in power plants or industrial manufacturing facilities
The ZORO SELECT - 60SE113N038 is a stainless steel street elbow fitting designed to change the direction of flow in piping systems with one male (street) end and one female (socket) end. It allows direct connection between a pipe and another fitting without requiring a short nipple. This Class 150 fitting is made from 316 stainless steel and is compatible with fluids in Class 150 piping systems
- maximum liquid operating pressure: 300 psi
- maximum steam pressure: 150 psi
- MNPT x FNPT threaded connections. It features a 3/8-inch nominal pipe size with National Pipe Thread (NPT) connections on both ends, provided as MNPT on the male side and FNPT on the female side. The fitting has a maximum operating pressure rating of 300 psi and a maximum steam pressure of 150 psi. Key Features:
- - Material: 316 Stainless Steel
- - Pipe Size: 3/8 in nominal diameter on both ends
- - Connection Type: MNPT (male) x FNPT (female), both NPT threaded
- - Pressure Class: Class 150 with a maximum operating pressure of 300 psi
- - Maximum Steam Pressure: 150 psi
- - For Class 150 piping systems using MNPT x FNPT connections and 316 stainless steel material, rated for maximum liquid pressure 300 psi and maximum steam pressure 150 psi.
- - Does not include any pre-applied thread sealant or sealing components
- - Color: Silver
- - Meets ANSI Standards B1.20.1 for threads and Class 150 pressure rating
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.10
- Package Height: 1.30
- Package Weight: 0.16
