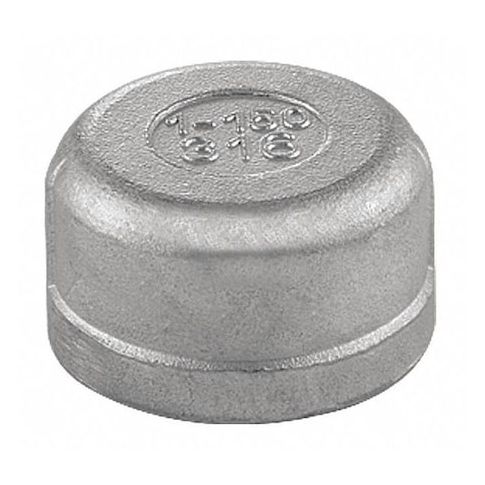

1-1/2" FNPT 304 SS Cap MPN:40RDC111N112

• The ZORO SELECT - 40RDC111N112 is a stainless steel pipe cap designed to close and seal the end of a pipe, stopping flow and protecting the pipe interior. It is made from 304 stainless steel and features a FNPT connection type with 1 1/2 inch threading, suitable for pipe fittings with a 1 1/2 inch nominal size and outside diameter. This cap conforms to ASTM A351 standards and ANSI B1.20.1 threading

• pressure rating is Class 150 and it is constructed for use with Schedule 40 pipe. It is suitable for use in line termination, pressure testing, and system extensions within specified parameters.

  Key Features:

  • - Material: 304 Stainless Steel
  • - Fitting Type: Cap with FNPT threaded connection
  • - Nominal Size: 1 1/2 inches with 1 1/2 threading on side A
  • - Pressure Class: Class 150, with maximum operating pressure of 300 psi
  • - Maximum Steam Pressure: 150 psi
  • - Temperature Range: -20 Degrees to 350 Degrees F
  • - Overall Length: 36 mm
  • - Not magnetic and does not include pre-applied thread sealant or sealing components
  • - Meets MSS-SP-114 Class 150 pressure ratings
