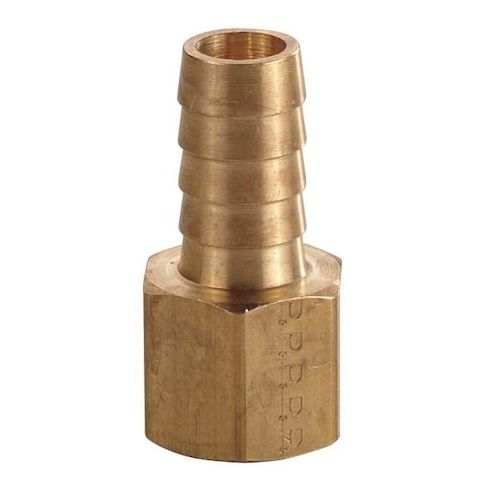

Hose Barb, 1/2 In Barb, 1/2 In FNPT, Brass MPN:6AFN0

The ZORO SELECT - 6AFN0 is a Barbed Hose Fitting designed for Low Pressure Pneumatic and Water applications. Constructed primarily with C37700 grade Brass material, this purposeful fitting has a straight shape and can connect to a Hose Barb x NPT. With a Barb size of 1/2 inch, a clamp, either Crimped or Hose Clamp, is required for full functionality, making it a versatile solution for various industrial needs. The fitting is suited for a hose with an ID of 1/2 inch, offering a straight fitting style that requires specific installation procedures.

Key Features:

• - Constructed with C37700 grade Brass material.
• - Features a Barb fitting shape for secure fastening.
• - Fitting sizes are 1/2 in x 1/2 in, perfect for corresponding Hose ID.
• - The Hex head size is 1 in, indicating the wrench size required for attachment.
• - Constructed with a Straight Fitting Style requiring specific installation procedures.
• - Has a maximum pressure tolerance of 300 psi, operates within defined pressure parameters.
• - Furnished with a Male Hose Fitting A and Female Hose Fitting B, size 1/2 inch each.
• - Features a non-reusable fitting intended for single-time usage, requires appropriate installation for solid connection.
• - Thread Size of 1/2 in compatible with NPT threaded hoses.
