45° Elbow, 1/2 in FNPT, 316 Stainless Steel, Class 3000 MPN:4307001258

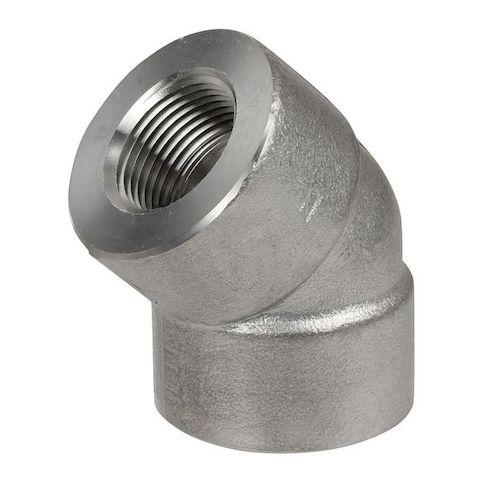

• The ZORO SELECT - 4307001258 is a 45 Degree Elbow stainless steel pipe fitting that redirects flow by 45 degrees as specified, offering a gentler flow direction change compared to a 90-degree elbow. Constructed from 316 stainless steel, this fitting has corrosion resistance and strength conforming to industry standards for piping systems. It features female National Pipe Thread (FNPT) connections on both ends, with a nominal pipe size of 1/2 inch and is rated for use with Class 3000 pressure-rated piping. The fitting is manufactured in accordance with ASME B1.20.1 for NPT threads and ASTM A182 specifications.

  Key Features:

  • - Material: 316 Stainless Steel for corrosion resistance and strength.
  • - Connection Type: Female NPT threads on both sides, nominal pipe size 1/2 inch.
  • - Shape: 45 Degree Elbow for a gentler flow direction change.
  • - Pressure Rating: Class 3000, rated for pressure up to 3000 psi.
  • - Outside Diameter: 1-1/2 inches at connection points with overall length of 2 inches as specified in product dimensions.
  • - Compliance: Threads conform to ASME B1.20.1
  • materials conform to ASTM A182
  • dimensions conform to ASME B16.11.
  • - Includes only the fitting as described
  • does not include sealant or sealing components.
