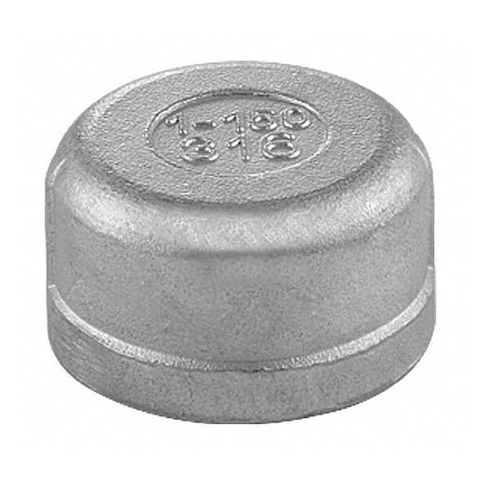

1-1/4" FNPT 316 SS Threaded Cap MPN:60RDC111N114
Seal and protect your pipes with the GoVets Select 60RDC111N114 stainless steel pipe cap. Designed for removable installation, this 316L stainless steel cap features a female National Pipe Thread (FNPT) connection type, allowing for easy installation and removal. Ideal for line termination, pressure testing, and future extensions, this cap is compatible with standard pipe installations and rated for operation within a specified temperature range. With a maximum steam pressure of 150 psi, it's perfect for a variety of applications, including industrial, commercial, and residential use, providing a secure and reliable seal for your pipes.
Top product features:
- Seals the end of a pipe to stop flow and protect the interior.
- Has a removable female National Pipe Thread (FNPT) connection for easy installation.
- Rated for operation within a temperature range of -20 to 350 degrees Fahrenheit.
Top product applications:
- Line termination
- Pressure testing
- Future pipe extensions
The ZORO SELECT - 60RDC111N114 is a stainless steel pipe cap designed to close and seal the end of a pipe to stop flow and protect the pipe interior. It has a female National Pipe Thread (FNPT) connection type with 1 1/2 threads per inch, allowing for removable installation. This pipe fitting is made from 316L stainless steel, rated for operation within the specified temperature range. It is rated for operation within the specified pressure ranges, with a maximum steam pressure of 150 psi. The cap is intended for pipes with a nominal size of 1 1/4 inches and a pipe schedule of 40, making it compatible with standard pipe installations requiring line termination, pressure testing, or future extensions.
Key Features:
- - Material: 316L stainless steel
- - Fitting shape: Cap for sealing pipe ends
- - Connection type: FNPT with 1 1/2 pipe threading
- - Pressure rating: pressure rating per ANSI B16.5 Class 150
- - Maximum steam pressure: 150 psi
- - Nominal pipe size: 1 1/4 inches
- - Pipe schedule compatibility: Schedule 40
- - Operating temperature range: -20 to 350 degrees Fahrenheit
- - Overall length: 32.7 mm
- - Meets ANSI B1.20.1 standards
- - No pre-applied thread sealant or included seal
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 2.20
- Package Height: 1.50
- Package Weight: 0.60
