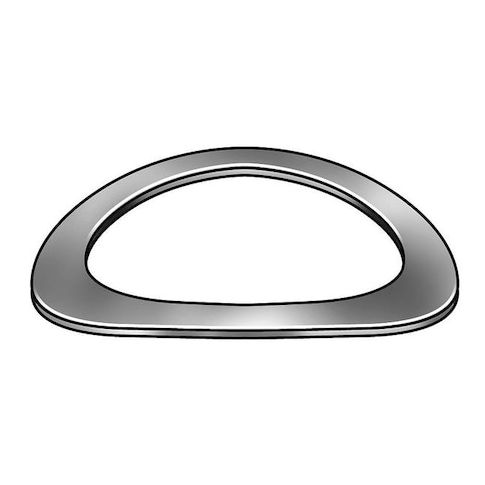

Disc Spring, Curved, 0.5, 301 SS, PK5 MPN:1UAP9
Disc Spring, Curved, 0.5, 301 SS, PK5
Our Curved Disc Spring is a versatile and reliable component, ideal for applications requiring precise load-bearing and deflection capabilities. Made from high-quality 301 stainless steel, this curved disc spring features a minimum inside diameter of 0.525 inches and a maximum outside diameter of 0.980 inches. With a load capacity of 20 pounds and a deflection of 0.063 inches, it's perfect for use in various industries, including aerospace, automotive, and medical devices. Its compact size and lightweight design make it an excellent choice for applications where space is limited, and its durability ensures reliable performance in demanding environments.
Top product features:
- Curved design allows for increased flexibility and adaptability in applications
- Min Inside Dia 0.525 In and Max Outside Dia 0.980 In enable secure fitment in a 1 In hole and compatibility with a 1/2 In rod
- Thickness of 0.021 In provides sufficient structural integrity for a load of 20 Lbs
Top product applications:
- Shock Absorbers
- Automotive Suspension Systems
- Aerospace Applications
Disc Spring, Curved, 301 Stainless Steel, Min Inside Dia 0.525 In, Max Outside Dia 0.980 In, Thickness 0.021 In, Overall Height 0.110 In, For Hole Size 1 In, For Rod Size 1/2 In, Load 20 Lbs, Deflection @ Load 0.063 In, Meets/Exceeds AISI Type 302, Package 5
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 2.70
- Package Width: 2.10
- Package Height: 0.10
- Package Weight: 0.02
Product info last updated on February 4, 2026 8:10pm UTC
Category: Springs
