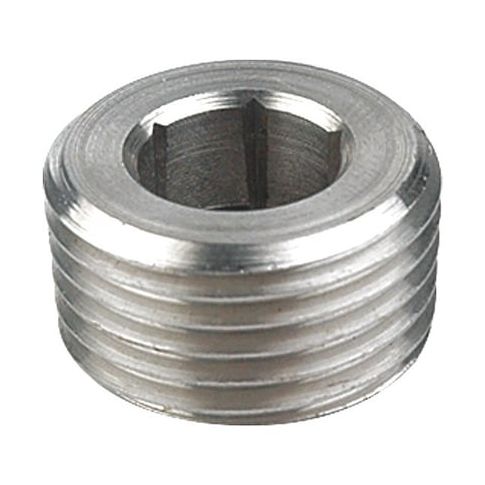

1-1/4 in 316L Stainless Steel Hex Socket Plug, MNPT, Class 150, 3/4 in Hex MPN:60SP112N114

The ZORO SELECT - 60SP112N114 is a stainless steel hex socket plug designed to close off the end of a pipe, fitting, or port. Made from 316L stainless steel. This threaded plug features a hex socket drive for installation and removal using an Allen or hex key, designed for Class 150 pressure applications. It accommodates pipes with a nominal size of 1-1/4 inches and is rated for maximum pressures up to 150 psi and temperatures ranging from -60 to 450 degrees Fahrenheit. Key Features:

• - Material grade: 316L stainless steel.
• - Fitting shape: Hex socket plug with internal hexagonal recess drive.
• - Connection type: Male National Pipe Thread (MNPT), Thread Size 1-1/4".
• - Pressure rating: Class 150, max pressure 150 psi, max steam pressure 150 psi.
• - Temperature range: -60 degrees to 450 degrees Fahrenheit.
• - Nominal pipe size and outside diameter: 1-1/4 in.
• - Hex size: 3/4 in wrench across flats for torque application.
• - Overall length: 20.5 mm.
• - Conforms to ASTM A351 standards.
• - No pre-applied thread sealant or included sealing components.
