Coiled Spring Pin, 7/32 in Outside Dia, 3/4 in L, Stainless Steel, 25 PK MPN:5DY62
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1630666

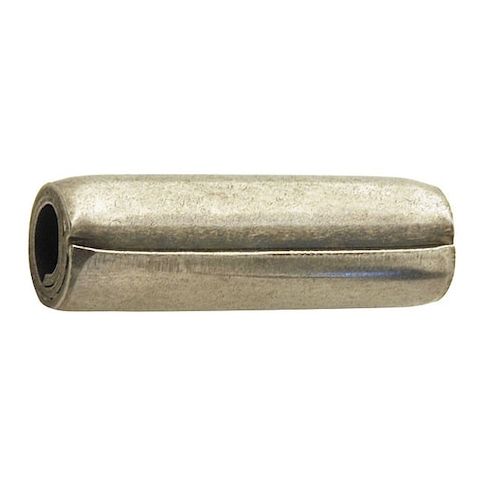

Coiled Spring Pin, 7/32 in Outside Dia, 3/4 in L, Stainless Steel, 25 PK
Elevate your projects with the Coiled Spring Pin from GoVets Select, a versatile and reliable fastening solution. Suitable for a wide range of applications, including aerospace, automotive, and general engineering, this pin offers superior strength and durability. Made from high-grade 420 stainless steel, it provides excellent resistance to corrosion and wear. With a 7/32 inch outside diameter and 3/4 inch length, it's perfect for use in tight spaces and can withstand heavy loads. Its coiled design allows for easy installation and removal, making it a convenient choice for applications where frequent disassembly is required.
Top product features:
- Coiled design allows for flexibility and ease of installation
- Chamfered ends facilitate smooth insertion into holes
- Made from stainless steel for corrosion resistance and durability
Top product applications:
- Coiled Spring Pin, 7/32 in Outside Dia, 3/4 in L, Stainless Steel, 25 PK from GoVets Select is used in Aerospace applications.
- Coiled Spring Pin, 7/32 in Outside Dia, 3/4 in L, Stainless Steel, 25 PK from GoVets Select is used in Automotive applications.
- Coiled Spring Pin, 7/32 in Outside Dia, 3/4 in L, Stainless Steel, 25 PK from GoVets Select is used in Medical applications.
Coiled Spring Pin, 7/32 In. dia,3/4 In. L,Coiled,PK25, System of Measurement Inch, Pin Diameter 7/32 in, Pin Type Coiled, Material Stainless Steel, Material Grade/Class 420, Finish Plain, Usable Length 3/4 in, End Type Chamfered, Chamfer Diameter 0.215 in, Fits Minimum Hole Diameter 7/32 in, Fits Maximum Hole Diameter 7/32 in, Shank Length 3/4 in, Maximum Chamfer Length 0.065 in, Nominal Diameter 7/32 in, Standards ASME B18.8.2, Shank Length Tolerance +/-0.010 in, Product Type Coiled Spring Pin
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 3.00
- Package Width: 1.30
- Package Height: 0.70
- Package Weight: 0.10
