1/2" Barb Gray PVC Ball Cone Spring Check Valve MPN:PVC CHK 426-8B8B-F
Free Shipping
In Stock
The GoVets Select 1/2in Barb Gray PVC Ball Cone Spring Check Valve is a reliable and efficient solution for various applications, including water supply systems, irrigation, and industrial processes. Its inline design and single flow direction make it ideal for horizontal or vertical mounting, while its Viton seal ensures a secure and leak-free connection. The valve's PVC body and stainless steel spring can withstand temperatures from -20°F to 140°F and pressures up to 125 psi, making it suitable for a range of environments. Its compact size and lightweight design make it easy to install and maintain, reducing downtime and increasing overall system performance.
Top product features:
- Flow design is single
- Body design is inline ball cone
- Full flow is yes
Top product applications:
- Water Supply Systems
- Steam Traps
- Pumping Systems

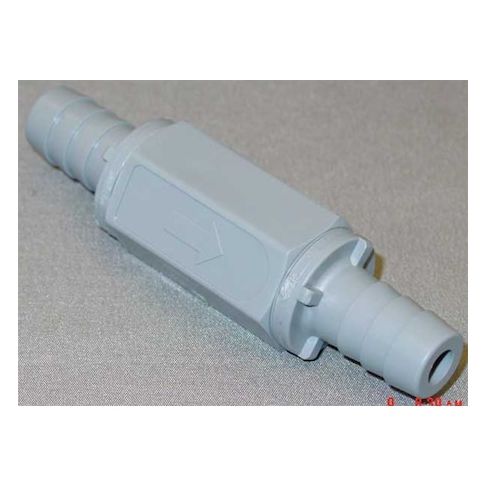

ZORO SELECT Series 426 check valve is an inline ball cone spring check valve for compatible chemical applications. It features a spring-loaded ball mechanism for one-direction flow applications. This model has a PVC body with 1/2 in barb x barb connections, a full-flow design, and can be mounted horizontally or vertically.
Key Features:
- Valve type: Ball cone spring check valve with inline body style and single-flow design.
- Body material: PVC.
- Seat material: PVC.
- Check mechanism: Ball with stainless steel mechanism material.
- Spring material: Hastelloy.
- Connection size: 1/2 in x 1/2 in.
- Connection type: Barb x barb.
- Cracking pressure: 1 psi.
- Pressure rating: 125 psi maximum operating pressure
- 125 psi maximum water pressure.
- Temperature range: -20 degrees F to 140 degrees F.
- Seal materials: FKM/Viton and PTFE.
- Mounting orientation: Horizontal or vertical.
- Dimensions: 3.53 in overall length, 1 in overall height, 1 in width.
- Standard: NSF 42.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 3.00
- Package Height: 2.00
- Package Weight: 0.33
