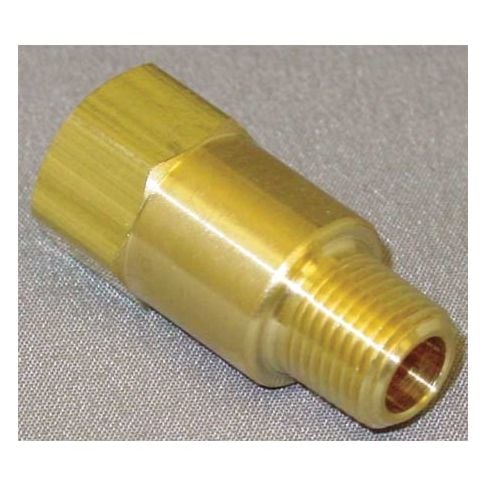

1/8" MNPT x FNPT Brass Piston Spring Check Valve MPN:CHK BRS 210-2M2F-B
Free Shipping
In Stock
This 1/8in MNPT x FNPT Brass Piston Spring Check Valve from GoVets Select is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical orientations, it allows for full flow in either direction while preventing backflow and ensuring a safe and consistent operation. Its high-quality construction with brass body, stainless steel spring, and Buna-N seal makes it resistant to corrosion and suitable for use with water and other fluids. Ideal for use in industrial, commercial, and residential settings, this check valve is perfect for applications such as plumbing, irrigation, and HVAC systems.
Top product features:
- Piston design allows for full flow when the valve is open
- Seal material is Buna-N, providing a durable and long-lasting seal
- Spring material is stainless steel, offering corrosion resistance and durability
Top product applications:
- Water filtration systems
- Steam power plant applications are not recommended due to the valve's un-rated steam pressure
- Hydraulic systems
ZORO SELECT Series 210 piston spring check valve is an inline, single-flow valve for air and fluid service within the specified pressure and temperature ratings. It uses a spring-loaded brass piston to allow flow in one direction and closes at 1 psi cracking pressure for single-direction flow applications. The brass body has 1/8 in. NPT connections with a male inlet and female outlet, and it can be mounted horizontally or vertically.
Key Features:
- Valve type: Piston spring check valve with inline piston design
- Body and internal materials: Brass body, brass check mechanism, brass seat, stainless steel spring, Buna-N seal
- Connections: 1/8 in. MNPT x FNPT
- side 1 male NPT, side 2 female NPT
- Pressure rating: 500 psi maximum operating/water pressure
- Cracking pressure: 1 psi
- Temperature range: -20 degrees F to 180 degrees F
- Flow characteristics: Single-flow design, full flow, Cv 0.2
- Mounting orientation: Horizontal or vertical
- Dimensions: 1 1/16 in. length, 9/16 in. overall height and width, 9/16 in. hex size, 2 5/16 in. cap to inlet center
- Standards: UL, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.30
