Spiral Wound Gasket, CRIR, 12 in, 16-1/8 in MPN:SWCRIR-1200-P1-G-WE-OA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1610248

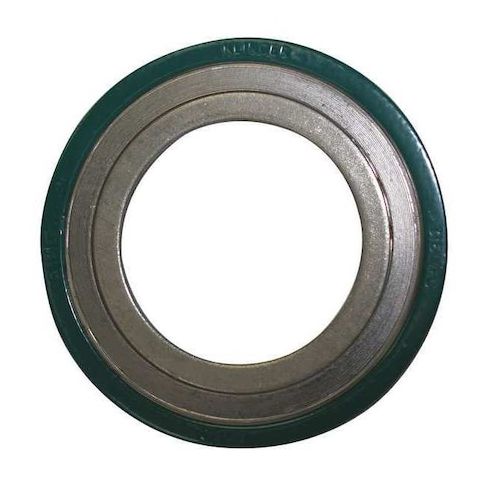

Spiral Wound Gasket, CRIR, 12 in, 16-1/8 in
This Spiral Wound Gasket is designed for use on ANSI Class 150 flanges, making it a reliable choice for a wide range of industrial applications, including power generation, oil and gas processing, and chemical processing. The gasket's graphite filler material and stainless steel spiral winding provide excellent sealing performance and resistance to extreme temperatures, from -18°C to 932°F. Its compact design and ease of installation make it a convenient option for maintenance and repair applications, reducing downtime and increasing overall efficiency. Suitable for use in high-pressure and high-temperature environments, this gasket offers a durable and long-lasting solution for critical sealing needs.
Top product features:
- Spiral winding material is Stainless Steel Grade 304.
- Fills gaps between flanges with graphite.
- Made with a carbon steel outer ring.
Top product applications:
- Industrial Pipe Fittings
- High-Temperature Piping Systems
- Chemical Processing Equipment
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 12 in, Inside Diameter 13 3/8 in, Outside Diameter 16 1/8 in, Thickness 1/4 in, Rim Stripe Color Gray, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature 0 Degrees F, Maximum Operating Temperature 932 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material Stainless Steel, Inner Ring Stainless Steel Grade 304
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.00
- Package Width: 18.00
- Package Height: 3.00
- Package Weight: 6.00
Product info last updated on January 26, 2026 11:58pm UTC
Category: Sealing and Gasketing
