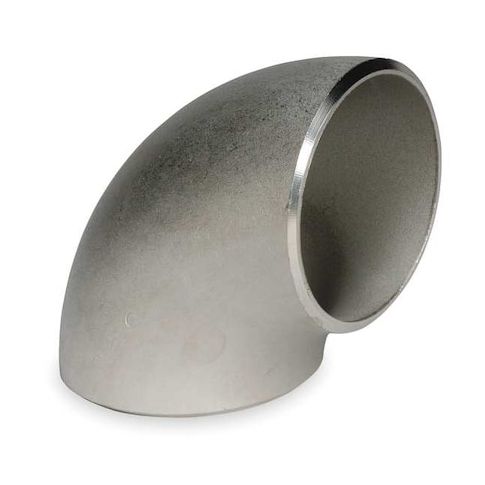

3 in Butt Weld 316L Stainless Steel Short Radius 90° Elbow Schedule 40 MPN:4381019650
Transform your piping systems with the ZORO SELECT 4381019650, a 3 in Butt Weld 316L Stainless Steel Short Radius 90° Elbow Schedule 40. Engineered for durability and corrosion resistance, this elbow fitting is perfect for high-pressure applications in industries such as pharmaceuticals, food processing, and chemical manufacturing. Its compact design and butt weld connection ensure a secure, leak-tight joint, minimizing downtime and maintenance costs. Suitable for a wide range of applications, this elbow fitting is ideal for use in process piping, steam systems, and other high-pressure applications where reliability and safety are paramount.
Top product features:
- The product features a corrosion-resistant 316L stainless steel construction for durability.
- The 90-degree short radius elbow provides a compact bend with a centerline radius equal to 1D.
- The butt weld connection type ensures a strong, streamlined joint.
Top product applications:
- Drinking Water Systems
- Oil and Gas Pipeline Systems
- Chemical Processing Plants
The ZORO SELECT - 4381019650 is a stainless steel 90-degree short radius elbow fitting, rated to change the direction of piping flow by 90 degrees within specified design parameters. Made from Schedule 40, 316L stainless steel, with corrosion resistance and suitable for accordance with pressure-rated piping standards. Its butt weld connection type features a butt weld connection type, compatible with specified pressure and safety standards, ensuring a secure, leak-tight joint.
Key Features:
- - Material: 316L stainless steel, offering corrosion resistance and durability.
- - Shape: 90 Degree Short Radius Elbow, providing a compact bend with a centerline radius equal to 1D.
- - Connection Type: Butt Weld, ensuring a strong, streamlined joint.
- - Nominal Pipe Size: 3 inches on both ends (Side A and B).
- - Length: 6 inches overall, suitable for space-limited configurations.
- - Fitting Schedule: Schedule 40, indicating the wall thickness and pressure rating.
- - Standards: Conforms to ASTM-A-403/A, 403M-88a specifications.
- - Max Operating Pressure: Refer to technical specifications.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 3.70
- Package Height: 3.70
- Package Weight: 2.90
