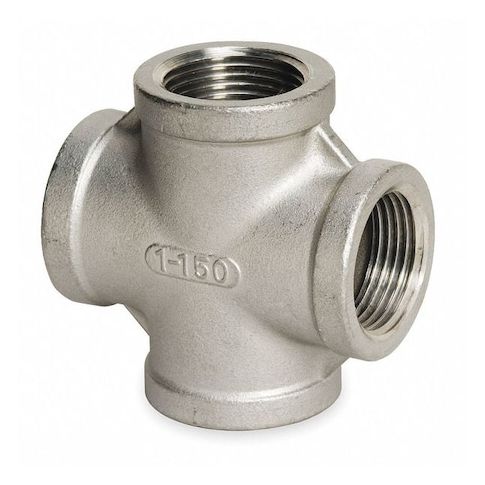

3" FNPT SS Cross MPN:4381037900
The ZORO SELECT - 4381037900 is a reliable and versatile 3in FNPT SS Cross fitting designed for pipe systems requiring a four-way intersection. Its 316 stainless steel construction ensures durability and resistance to corrosion, while its female NPT threaded connections allow for easy installation and connection to other pipes. Rated for 300 psi at 150°F, this cross fitting is ideal for use in high-pressure applications, including HVAC, plumbing, and chemical processing systems. Its compact design and silver finish make it a convenient and attractive addition to any pipe system.
Top product features:
- The product has four female NPT threaded connections, each sized at 3 inches nominal pipe size, allowing for a four-way intersection with four openings arranged at 90° in one plane.
- The product is rated for a maximum operating pressure of 300 psi at 150°F, classified as Class 150, providing a reliable and safe connection for high-pressure applications.
- The product conforms to ASTM-A-351 for material, ANSI/ASME B1.20.1 for thread standards, and MSS-SP-114 Class 150 for pressure ratings, ensuring compatibility and durability in a variety of pipe systems.
Top product applications:
- Pipe systems requiring a four-way intersection with four openings arranged at 90° in one plane
- High-pressure applications such as oil and gas systems or chemical processing plants
- Industrial settings where a durable and corrosion-resistant material is necessary
The ZORO SELECT - 4381037900 is a 316 stainless steel cross fitting designed for pipe systems requiring a four-way intersection with four openings arranged at 90° in one plane. It features female NPT threaded connections on all four sides, with a nominal pipe size of 3 inches and an outside diameter of 4-11/64 inches. This cross fitting is rated for a maximum operating pressure of 300 psi at 150°F, classified as Class 150, and conforms to ASTM-A-351 for material, ANSI/ASME B1.20.1 for threads, and MSS-SP-114 Class 150 pressure ratings. The product has an overall length of 5 3/16 inches and is silver in color. Key Features:
- - Material: 316 stainless steel.
- - Shape: Cross configuration with four female NPT threaded connections, each sized at 3 inches nominal pipe size.
- - Pressure Rating: Class 150, supporting up to 300 psi maximum operating pressure at 150°F.
- - Standards Compliance: Meets ASTM-A-351 for material, ANSI/ASME B1.20.1 for thread standards, and MSS-SP-114 Class 150 for pressure ratings.
- - Thread Sealant and Seals: Does not include pre-applied thread sealant or sealing components.
- - Dimensions: Outside diameter of 4-11/64 inches and overall length of 5 3/16 inches.
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 6.50
- Package Height: 5.00
- Package Weight: 7.45
