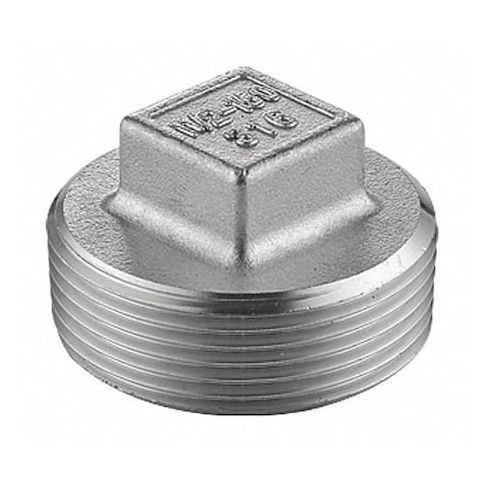

1-1/4" MNPT 316 SS Square Head Plug MPN:60SQ112N114
This 1-1/4in MNPT 316 SS Square Head Plug is designed for closing or sealing threaded pipes, couplings, or fittings in industrial and plumbing environments. Manufactured from 316L stainless steel, it provides corrosion resistance and meets ANSI B1.20.1 standards and Class 150 specifications. The plug features a flat wrenching surface for easy installation and removal, making it ideal for use in applications where high pressure and temperature fluctuations are present. Its compact design and durable construction make it perfect for use in a variety of settings, including chemical processing, oil and gas, and water treatment plants.
Top product features:
- Corrosion resistance is provided by the 316L stainless steel material.
- The square head plug features a threaded connection of MNPT type for secure installation and removal.
- The plug is designed to close or seal the end of threaded pipes, couplings, or fittings, providing a secure and leak-free connection.
Top product applications:
- Pipe fitting closures
- Industrial pipe sealing
- Plumbing system connections
The ZORO SELECT - 60SQ112N114 is a stainless steel square head plug designed to close or seal the end of threaded pipes, couplings, or fittings. Manufactured from 316L stainless steel and rated for operation within the specified pressure range of 300 psi, it provides corrosion resistance and is intended for use within specified industrial and plumbing environments. The plug features a threaded connection of MNPT type with a size of 1-1/4 inches, a 11 1/2-inch pipe thread, and overall dimensions of 39 mm in length. It meets ANSI B1.20.1 standards and Class 150 specifications.
Key Features:
- - Material Grade: 316L Stainless Steel, offering corrosion resistance.
- - Class: Class 150, indicating pressure rating.
- - Connection Type: MNPT (Male National Pipe Thread).
- - Fitting Shape: Square head plug with a flat wrenching surface for installation and removal.
- - Nominal Pipe Size: 1-1/4 in.
- - Outside Diameter: 1-1/4 in.
- - Overall Length: 39 mm.
- - Standards: Meets ANSI B1.20.1 and Class 150 specifications.
- - Pressure Rating: Max. pressure of 300 psi.
- - Temperature Range: -20°F to 350°F.
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.60
- Package Width: 1.60
- Package Height: 1.50
- Package Weight: 0.30
