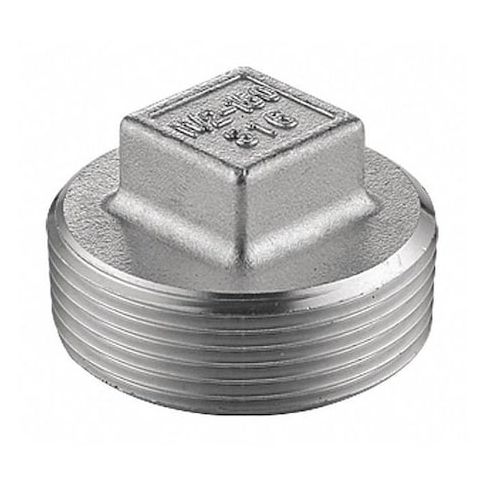

1 in 316L Stainless Steel Square Head Plug, Class 150, MNPT, 300 psi Max Pressure MPN:60SQ112N010
1 in 316L Stainless Steel Square Head Plug, Class 150, MNPT, 300 psi Max Pressure
The ZORO SELECT - 60SQ112N010 is a stainless steel square head plug intended to close the end of a threaded pipe, coupling, or fitting. Material: 316L stainless steel. This plug features a 2-inch square drive head that offers a flat wrenching surface for installation and removal. It is rated to handle a maximum operating pressure of 300 psi and can operate within a temperature range of -20 to 350 °F. The fitting conforms to ANSI B1.20.1 standards and is classified as Class 150 for pressure rating.
Key Features:
- - Material: 316L stainless steel.
- - Shape: Square head plug.
- - Connection Type: MNPT, 1 in nominal pipe size, 11.5 TPI on Side A.
- - Pressure Rating: Class 150 with maximum operating pressure of 300 psi.
- - Temperature range: -20 to 350 °F.
- - Dimensions: Outside diameter of 1 inch and overall length of 32.5 mm.
- - Drive Style: 2-inch square head for wrench engagement.
- - Thread Sealant: Not pre-applied
- seal not included.
- - Meets ANSI Standards B1.20.1 and Class 150 pressure requirements.
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.30
- Package Width: 1.30
- Package Height: 1.30
- Package Weight: 0.19
Product info last updated on February 23, 2026 11:46am UTC
Category: Pipes, Valves and Fittings
