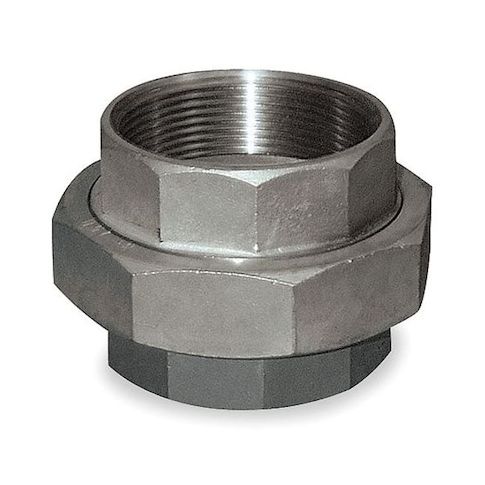

1/8 in FNPT Stainless Steel Threaded Union, Class 3000, 304 Material MPN:4307000950

• The ZORO SELECT - 4307000950 is a stainless steel pipe union designed to connect two pipe ends with a quick disconnect feature. Made from corrosion-resistant stainless steel, it features a three-piece construction (body, nut, and gasket) and is intended for use in piping systems that comply with applicable standards and are within specified operating conditions. The union is rated for operation within these specified pressure and temperature ranges, with a standard connection type of FNPT and a nominal size of 1/8 inch.

  Key Features:

  • - Material Grade: 304 stainless steel, offering corrosion resistance and durability.
  • - Class: Class 3000, indicating the pressure rating classification.
  • - Connection Type: FNPT (female threads) on both sides for compatible threaded piping.
  • - Nominal Pipe Size: 1/8 in, with an outside diameter of 1 7/16 in.
  • - Overall Length: 1 5/8 in.
  • - Standards: Threads conform to ASME B1.20.1
  • materials conform to ASTM A182
  • dimension conform to ASME B16.11.
  • - Designed for applications within specified conditions.
