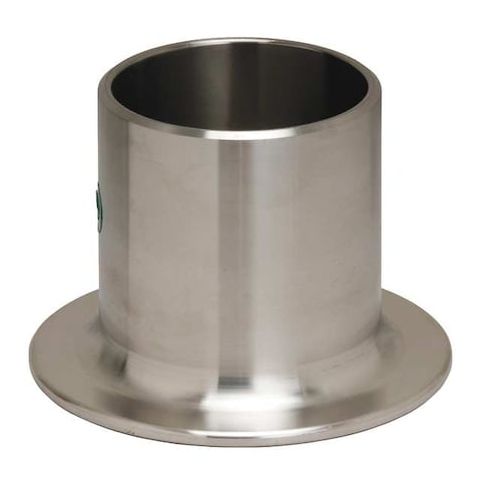

4 in. Schedule 10 304L Stainless Steel Butt Weld Stub End Type A MPN:4381023080

The ZORO SELECT 4381023080 is a stainless steel Stub End Type A fitting designed for butt-welded attachment to pipelines. It supports the use with lap-joint flanges, allowing the flange to slip over and rotate around the stub end, facilitating alignment, disassembly, or use with dissimilar flange materials. Constructed from 304L stainless steel and rated for operation within the specified pressure and temperature ranges, it is constructed from corrosion-resistant materials suitable for specified piping systems.

Key Features:

• - Material: 304L Stainless Steel, suitable for corrosion resistance and durability.
• - Shape: Stub End, short formed fitting for pipe connection.
• - Connection Type: Butt Weld, butt-welded to pipe and flange.
• - Pipe Size (Side A): 4 inches nominal, with a 2-inch outside diameter.
• - Pipe Schedule: 10, indicating compatibility with Schedule 10 pipe.
• - Overall Length: 3 inches.
• - Fitting Side A and B: Butt Weld connections, 4 inches nominal pipe size.
• - Standards: ASTM-A-403/A, among other applicable standards.
• - Pressure Rating: Max 275 psi at 150°F.
• - No pre-applied thread sealant or included seal.
