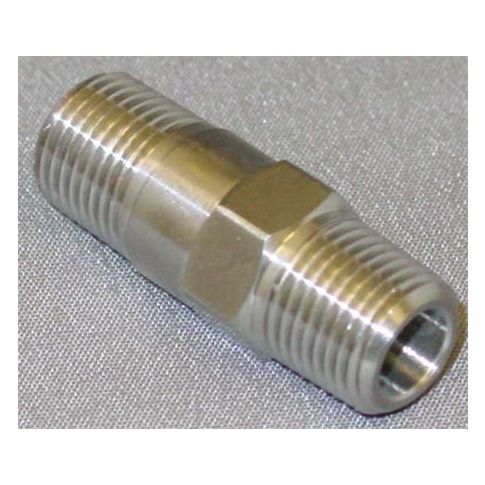

1/8" MNPT Stainless Steel Piston Spring Check Valve MPN:CHK SST 210-2M2M-B
Free Shipping
In Stock
This 1/8in MNPT Stainless Steel Piston Spring Check Valve is a reliable solution for various applications, including plumbing, HVAC, and industrial systems. Its inline piston design and stainless steel construction ensure durability and resistance to corrosion, making it ideal for use in harsh environments. The valve's single flow design and 1 psi cracking pressure provide precise control over fluid flow, while its 500 psi maximum water pressure rating ensures reliable operation. Suitable for use in horizontal or vertical orientations, this valve is perfect for applications where precise control and reliability are crucial, such as in medical equipment, laboratory settings, and commercial kitchens.
Top product features:
- The valve has a single flow design for efficient fluid flow.
- The piston spring mechanism allows for reliable check valve operation.
- The valve body is made of stainless steel for durability and corrosion resistance.
Top product applications:
- Water Filtration Systems
- Steam Traps
- High-Pressure Fluid Control Systems
ZORO SELECT Series 210 1/8 in. piston spring check valve is an inline, single-flow check valve with MNPT x MNPT connections. It features a stainless steel body and internal components and uses a spring-loaded stainless steel piston configured for one-way flow
- cracking pressure: 1 psi. Designed for air and fluids, it is for use in compatible air and fluid piping systems requiring a check valve.
Key Features:
- Inline piston spring check valve for one-way flow control
- 1/8 in. nominal valve size with 1/8 in. male NPT connections on both ends
- Stainless steel body, seat, check mechanism, and spring
- Buna-N seal material
- Cracking pressure: 1 psi
- Maximum operating pressure: 500 psi
- Operating temperature range: -20 degrees F to 180 degrees F
- Compatible media: air, fluids
- Mounting orientation: horizontal or vertical
- Single-flow design
- Full flow: yes
- Cv: 0.2
- Overall length: 1.19 in.
- Standards: UL, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.16
