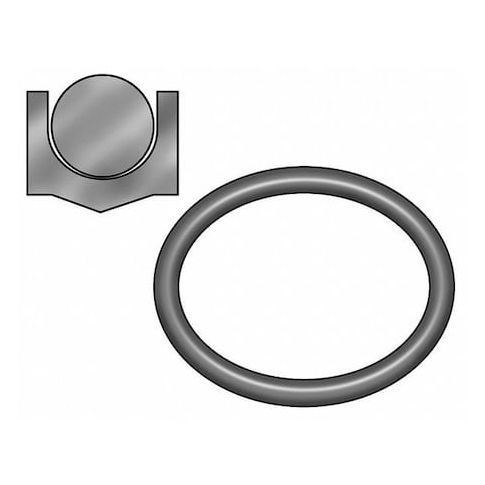

Piston Seal, 3 1/8IDx3 1/2OD, 3/16Wx3/16H MPN:2JBA3
Piston Seal, 3 1/8IDx3 1/2OD, 3/16Wx3/16H
The GoVets Select Piston Seal is a high-performance component designed for use in a variety of applications requiring precision sealing. Its urethane construction and 95 Shore A durometer provide excellent durability and resistance to extreme temperatures, from -35°F to 220°F. Suitable for use in bores with a diameter of 3.5 inches, this seal features a 3.125-inch piston groove diameter and can withstand pressures up to 5,000 psi. Ideal for use in industrial and commercial settings, the piston seal is a reliable choice for applications requiring precision sealing, including hydraulic systems, pumps, and cylinders.
Top product features:
- Seal Type Crown provides a secure fit for piston grooves.
- Urethane material offers durability and resistance to wear and tear.
- Temperature Range -35 Degrees to 220 Degrees F allows for operation in a wide variety of environments.
Top product applications:
- Piston Seal can be used in hydraulic cylinders to prevent fluid leakage and maintain system pressure.
- Piston Crown Seal is suitable for applications requiring high temperature resistance, such as in engines or pumps operating at elevated temperatures.
- Piston Seal can be used in pneumatic cylinders to prevent air leakage and maintain system pressure.
Piston Crown Seal, Seal Type Crown, Seal Material Urethane, For Bore Dia. 3 1/2 in, Seal Durometer 95 Shore A, Shell Durometer 95 Shore A, Temp. Range -35 Degrees to 220 Degrees F, For Groove Width 0.28 in, For Piston Groove Dia. 3.125 in, Max. Speed 3 fps, Max. Pressure 5,000 psi, Inside Dia. 3 1/8 in, Outside Dia. 3 1/2 in, Width 3/16 in, Height 3/16 in, Color Black
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 0.10
- Package Weight: 0.01
Product info last updated on February 11, 2026 4:57pm UTC
Category: Sealing and Gasketing
