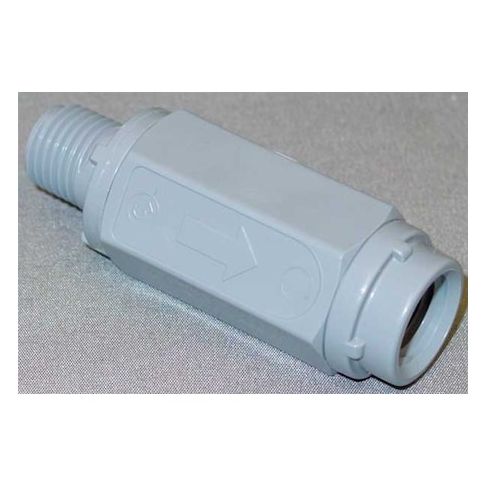

1/4" MNPT x FNPT Gray PVC Ball Cone Spring Check Valve MPN:PVC CHK 426-4M4F-B
Free Shipping
In Stock
The GoVets Select 1/4in MNPT x FNPT Gray PVC Ball Cone Spring Check Valve is a reliable and efficient solution for various applications. Suitable for use in water, chemical, and steam systems, this check valve features a single flow design and inline ball cone mechanism. Its PVC body and stainless steel spring ensure durability and resistance to corrosion, while the Buna-N seal provides a secure seal. With a cracking pressure of 1 psi and a maximum water pressure of 125 psi, this valve is ideal for horizontal or vertical mounting in a range of industries, including commercial and industrial plumbing.
Top product features:
- Single flow design allows for full flow through the valve
- Inline ball cone mechanism and body design
- Buna-N seal material provides a watertight seal up to 140°F
Top product applications:
- Water filtration systems
- Automotive cooling systems
- Pneumatic systems
ZORO SELECT 426 series ball cone spring check valve is an inline valve for one-way flow applications with spring-assisted check mechanism. It features a PVC body, a ball check mechanism, and is constructed with a PVC body and Buna-N seal material. The 1/4 in valve size with MNPT x FNPT threaded connections supports horizontal or vertical installation.
Key Features:
- Valve type: Ball cone spring check valve with inline body design
- Body material: PVC
- Check mechanism: Ball with stainless steel mechanism components
- Connection size: 1/4 in x 1/4 in
- Connection type: MNPT x FNPT, NPT threaded
- Cracking pressure: 1 psi
- Pressure rating: 125 psi maximum operating/water pressure
- Temperature range: -20 degrees F to 140 degrees F
- Seal material: Buna-N
- Seat material: PVC
- Spring material: Hastelloy
- Full flow: Yes
- Mounting orientation: Horizontal or vertical
- Standards: NSF 42
- Overall dimensions: 2.99 in L x 1 in H x 1 in W
