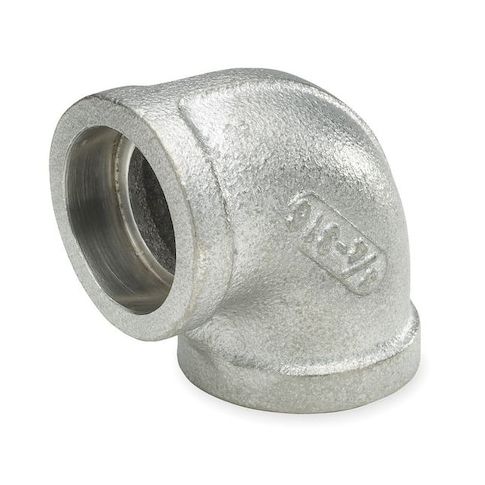

1 in Socket Weld Stainless Steel 90° Elbow, Class 3000, 304L, Schedule 80 MPN:4307004312
This 1 in Socket Weld Stainless Steel 90° Elbow is a versatile and reliable pipe fitting designed to change the flow direction of fluids and gases in high-pressure applications. Suitable for use in industries such as chemical processing, power generation, and oil and gas, it offers excellent resistance to corrosion and high-temperature stress. The Class 3000 pressure rating ensures safe operation up to 2,570 psi at 100°F, making it ideal for applications involving steam, water, and other aggressive fluids. Its compact design and easy installation make it a convenient choice for plumbers, engineers, and technicians.
Top product features:
- Changes the flow direction of the pipe at a 90° angle
- Provides socket weld connections with female gender fittings on both ends
- Is manufactured from 304 stainless steel for pressure rating to Class 3000
Top product applications:
- Pipe Fittings for High-Temperature Steam Systems
- High-Pressure Chemical Processing Plants
- Industrial Water Supply Systems
The ZORO SELECT - 4307004312 is a 90 Degree Elbow stainless steel pipe fitting designed to connect two pipes at a right angle (90°) to change the flow direction. It features socket weld connections on both ends with female gender fittings, each sized for 1-inch nominal pipe. Manufactured from 304 stainless steel, this elbow is pressure rated to Class 3000, supporting a maximum internal pressure of 2,570 psi at 100 degrees Fahrenheit and a maximum steam pressure of 1,965 psi at 350 degrees Fahrenheit. It complies with standards ISO 9001:2008, ASTM A182, and ASME B16.11. Key Features:
- - Material: 304 Stainless Steel
- - Shape: 90 Degree Elbow for changing flow direction
- - Connection Type: Socket weld with female gender on both ends
- - Nominal Pipe Size: 1 inch for both ends
- - Pressure Rating: Class 3000
- - Maximum Pressure: 2,570 psi @ 100°F
- - Maximum Steam Pressure: 1,965 psi @ 350°F
- - Standards: ISO 9001:2008
- ASTM A182
- ASME B16.11
- - Outside Diameter (approx.): 1 11/16 inches at connection
- - Overall Length: 2 3/4 inches
- - Color: Silver
- - Does not include pre-applied thread sealant or seal
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 1.90
- Package Height: 2.30
- Package Weight: 1.05
