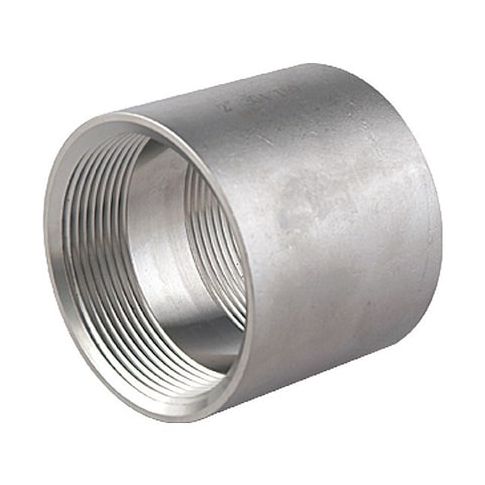

304 Stainless Steel Coupling, 1/8 in FNPT x 1/8 in FNPT, Class 150 MPN:40FC111N018
Connect pipes and tubes with ease using the ZORO SELECT 304 Stainless Steel Coupling. This versatile fitting is designed for use with fluids and gases compatible with 304 stainless steel, operating within a maximum pressure rating of 300 psi. With female National Pipe Thread Tapered (NPT) connections on both ends, it provides a reliable and leak-free connection. Suitable for a wide range of applications, including chemical processing, food and beverage, and pharmaceutical industries, this coupling ensures a secure and durable connection. Its compact design and corrosion-resistant material make it an ideal choice for various piping systems.
Top product features:
- Material: 304 Stainless Steel
- Fitting type: Coupling with FNPT (Female National Pipe Thread Tapered) connections on both ends
- Maximum operating pressure: 300 psi for general use
Top product applications:
- Fluid transfer systems in laboratories and medical facilities
- Hydraulic or pneumatic systems in industrial applications
- Chemical processing equipment in food and beverage manufacturing
The ZORO SELECT - 40FC111N018 is a stainless steel coupling intended to provide a straight-through connection between two pipes or tubes in line. Made from 304 stainless steel, this coupling is intended for use with fluids and gases compatible with 304 stainless steel and operating within the specified pressure ratings (Class 150, 300 psi maximum operating pressure, 150 psi steam). It features female National Pipe Thread Tapered (NPT) connections on both ends, sized at 1/8 inch nominal pipe size with matching outside diameters and a 27-thread count. The fitting is rated for Class 150 pressure and has a maximum operating pressure of 300 psi, with a maximum steam pressure rating of 150 psi. Key Features:
- - Material: 304 Stainless Steel
- - Fitting type: Coupling with FNPT (Female National Pipe Thread Tapered) connections on both ends
- - Nominal pipe size: 1/8 inch on both sides
- - Thread specification: 27 TPI (threads per inch) with NPT threading type
- - Pressure rating: Class 150, maximum operating pressure of 300 psi for general use
- - Maximum steam pressure: 150 psi
- - Color: Silver
- - Overall length: 25.4 mm
- - Compliance: Meets ASTM-A-351 for material, threads conform to ANSI/ASME B1.20.1, and meets MSS-SP-114 Class 150 pressure ratings
- - Low lead compliance: Compliant for potable water systems
- - No pre-applied thread sealant or included seals
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.10
- Package Width: 0.70
- Package Height: 0.70
- Package Weight: 0.06
