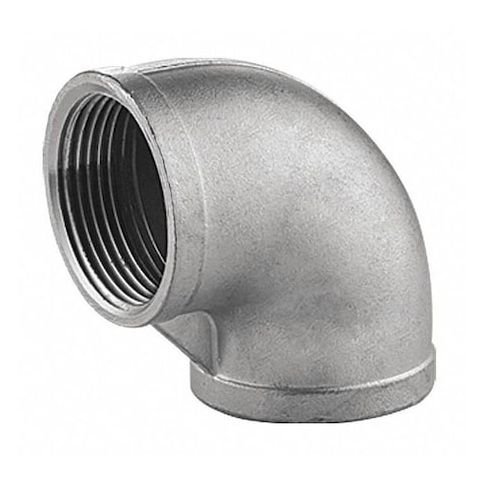

2-1/2" FNPT 316 SS 90 Degree Elbow MPN:609E111N212
The ZORO SELECT 609E111N212 2-1/2in FNPT 316 SS 90 Degree Elbow is a high-performance stainless steel fitting designed for demanding applications. Constructed from durable 316 stainless steel, this elbow fitting provides a reliable and leak-resistant connection for pipes in air, natural gas, oil, and water systems. With a maximum pressure rating of 300 psi and a maximum steam pressure of 150 psi, this fitting meets ANSI standards and is suitable for Class 150 pressure ratings. Its compact 90-degree design allows for efficient pipe routing and reduces space requirements in industrial settings.
Top product features:
- 316 stainless steel construction for durability and corrosion resistance
- 90-degree elbow shape for right-angle pipe connections
- Female FNPT connections for secure and leak-resistant pipe fittings
Top product applications:
- Compatible with air systems using FNPT connections and within Class 150 pressure rating
- Compatible with natural gas systems using FNPT connections and within Class 150 pressure rating
- Compatible with water systems using FNPT connections and within Class 150 pressure rating
The ZORO SELECT 609E111N212 is a stainless steel 90-degree elbow fitting designed to connect two pipes and provide a right-angle turn. Constructed from 316 stainless steel, this fitting features female threaded connections with a nominal size of 2 1/2 inches on both sides. It is rated for a maximum pressure of 300 psi and a maximum steam pressure of 150 psi, with a pressure class of 150. Application: Compatible with air, natural gas, oil, and water systems using FNPT connections and within Class 150 pressure rating. It meets ANSI Standards B1.20.1 and Class 150 specifications.
Key Features:
- - Material: 316 stainless steel
- - Shape: 90 Degree Elbow for right-angle pipe connections
- - Pressure Rating: Max. pressure 300 psi
- Max. steam pressure 150 psi
- - Connection Type: Female FNPT connections on both sides
- - Nominal Pipe Size: 2 1/2 inches on each end
- - Standards: Meets ANSI B1.20.1 and Class 150 requirements
- - Fitting Schedule/Class: Class 150
- - Application: Compatible with air, natural gas, oil, and water systems using FNPT connections and within Class 150 pressure rating
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 3.40
- Package Height: 4.30
- Package Weight: 2.05
