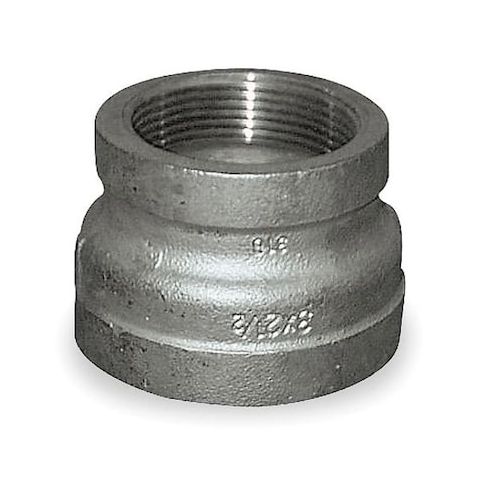

Reducing Coupling, 304 Stainless Steel, 1-1/4 in x 1/4 in FNPT, Class 150 MPN:4381032360

The ZORO SELECT - 4381032360 is a reducing coupling made of 304 stainless steel, designed to join two pipes of different diameters in a piping system. This fitting features female National Pipe Taper (NPT) threaded connections on both ends, sized 1-1/4 inches by 1/4 inch nominal pipe size, facilitating a compact transition between pipe sizes. Rated for use within specified pressure and temperature ranges. The silver-colored coupling complies with ASTM-A-351 material standards, ANSI/ASME B1.20.1 threading standards, and meets MSS-SP-114 Class 150 pressure rating specifications.

Key Features:

• - Constructed from 304 Stainless Steel providing corrosion resistance.
• - Configuration: Reducer coupling joining 1-1/4" to 1/4" pipe sizes.
• - Connection type: Female NPT threaded ends on both sides.
• - Rated for operation within specified pressure and temperature ranges.
• - Overall length: 1-15/16 inches with an outside diameter of 2-3/32 inches.
• - Standards: ASTM-A-351 for material, ANSI/ASME B1.20.1 for threads, MSS-SP-114 Class 150 for pressure rating.
• - Does not include pre-applied thread sealant or sealing components.
