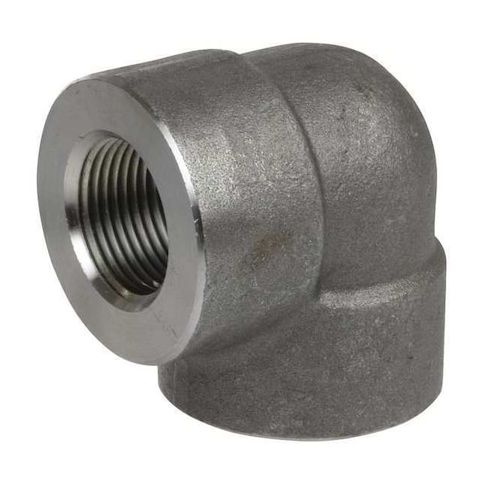

90° Elbow, 1/2 in FNPT, 304 Stainless Steel, Class 3000, ASTM A182, ANSI B16.11 MPN:2UA57
Free Shipping
In Stock
Boost your industrial piping system with the ZORO SELECT - 2UA57 90° Elbow, expertly crafted from 304 stainless steel to withstand high-pressure applications. Suitable for use in various industries, this fitting provides a reliable and efficient solution for changing the direction of flow. Its female FNPT threaded connections ensure a secure connection, while its Class 3000 rating and ANSI B16.11 compliance guarantee performance in demanding environments. Ideal for use in chemical processing, oil and gas, and power generation, this elbow fitting is a must-have for any industrial piping system, offering a durable and long-lasting solution for your most critical applications.
Top product features:
- 90 Degree Elbow design provides a right-angle flow change
- 304 Stainless Steel construction is suitable for high-pressure applications
- Female NPT threaded connections on both ends allow for secure pipe connections
Top product applications:
- Plumbing systems for commercial or industrial use
- Steam power plants for high-pressure steam distribution
- High-pressure gas distribution systems in oil refineries or chemical plants
The ZORO SELECT - 2UA57 is a 90 Degree Elbow stainless steel pipe fitting designed to connect two pipes at a right angle (90°) to change the direction of flow. Constructed from 304 stainless steel
- suitable for high-pressure applications within specified pressure and temperature ranges. This fitting features female FNPT threaded connections on both ends, each sized at 1/2 inch nominal pipe size with 14 threads per inch using NPT threading. It is rated for use within specified pressure and temperature parameters
- actual performance may vary based on installation and operating conditions. It is pressure rated to Class 3000, with a maximum pressure capacity of 3000 psi at 100 degrees F and a maximum steam pressure of 2500 psi at 350 degrees F.
Key Features:
- - Material: 304 Stainless Steel, conforming to ASTM-A-182 standard.
- - Shape: 90 Degree Elbow, providing a right-angle flow change.
- - Connection Type: Female NPT (FNPT) threaded ends on both sides.
- - Nominal Pipe Size: 1/2 inch on both connections.
- - Threading: 14 threads per inch with ANSI/ASME B1.20.1 threading standard.
- - Pressure Class: Class 3000, suitable for high-pressure use.
- - Maximum Pressure: 3000 psi at 100°F.
- - Maximum Steam Pressure: 2500 psi at 350°F.
- - Meets ASME B16.11 standards for pipe fittings.
- - Does not include pre-applied thread sealant or additional seals.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.05
- Package Width: 1.50
- Package Height: 2.05
- Package Weight: 0.95
