3/8" Push Gray PVC Ball Cone Spring Check Valve MPN:PVC CHK 426-6SMC6SMC-F
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1253621

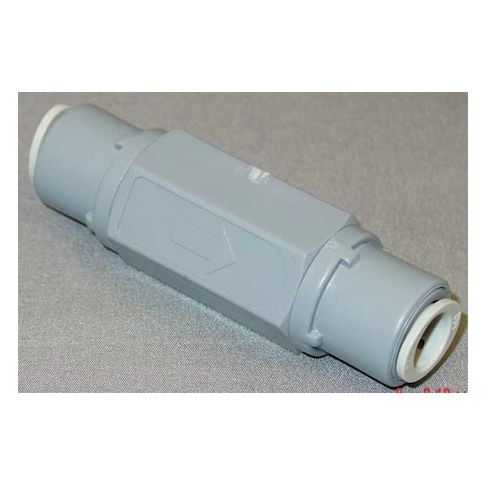

3/8" Push Gray PVC Ball Cone Spring Check Valve
GoVets Select ball cone spring check valve with an inline body design for water media applications within listed pressure and temperature ratings. It uses a spring-loaded ball check mechanism for one-way flow applications. The PVC body features 3/8 in push-to-connect ends on both sides, a full-flow design, and is specified for horizontal or vertical mounting orientations.
Key Features:
- Valve type: Ball cone spring check valve with inline body design
- Body material: PVC
- Connection size: 3/8 in x 3/8 in
- Connection type: Push x Push, push-to-connect
- Check mechanism: Ball
- Cracking pressure: 1 psi
- Flow design: Single
- full flow: Yes
- Media: Water
- Pressure rating: 125 psi maximum operating/water pressure
- Temperature range: -20 degrees F to 140 degrees F
- Seal materials: FKM/Viton and PTFE
- Seat material: PVC
- Spring material: Stainless steel
- Mounting orientation: Horizontal or vertical
- Overall size: 3.44 in L x 1 in H x 1 in W
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 5.00
- Package Height: 1.10
- Package Weight: 0.35
Product info last updated on January 31, 2026 11:57pm UTC
Category: Pipes, Valves and Fittings
