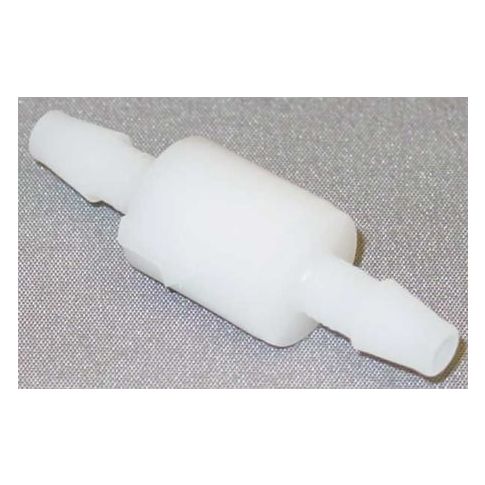

3/16" Barb Polypropylene Ball Cone Spring Check Valve MPN:PP CHK 695-3B3B-B
Free Shipping
In Stock
This 3/16in Barb Polypropylene Ball Cone Spring Check Valve is a reliable and efficient solution for various applications, including water treatment, chemical processing, and pharmaceutical manufacturing. Its single flow design and inline ball cone mechanism ensure smooth operation and prevent backflow, while its polypropylene body and Buna-N seal withstand harsh temperatures and corrosive substances. Suitable for horizontal and vertical mounting, this valve is ideal for use in systems where pressure fluctuations are a concern. With a cracking pressure of 1 psi and a max water pressure of 125 psi, it provides consistent performance in a wide range of environments.
Top product features:
- 3/16in Barb Polypropylene Ball Cone Spring Check Valve allows for inline installation.
- The valve has a single flow design.
- The valve is rated for 125 psi maximum water pressure.
Top product applications:
- Drainage systems in residential or commercial buildings
- Filtration systems in industrial processes
- Pressure control systems in HVAC applications
ZORO SELECT Series 695 ball cone spring check valve with an inline, single-flow design for air and fluid applications compatible with the listed materials, pressure rating, and temperature range. It uses a spring-loaded ball check mechanism for one-direction flow control. The polypropylene body has barb x barb connections for 3/16 in pipe or tube size and may be mounted horizontally or vertically.
Key Features:
- Valve type: Ball cone spring check valve with inline body design
- Connection size: 3/16 in on both sides
- Connection type: Barb x Barb
- Body material: Polypropylene
- Check mechanism: Ball with stainless steel mechanism and spring
- Seal material: Buna-N
- Seat material: Polypropylene
- Cracking pressure: 1 psi
- Flow coefficient (Cv): 0.2
- Maximum operating pressure: 125 psi
- Operating temperature range: -20 degrees F to 140 degrees F
- Mounting orientation: Horizontal, Vertical
- Full flow: Manufacturer listed as Yes
- Overall length: 1.72 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.00
- Package Height: 0.50
- Package Weight: 0.04
