Flange Gasket, Ring, 6 In, Graphite MPN:FLEXIGRAF-RG-0150-062-0600
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1207306

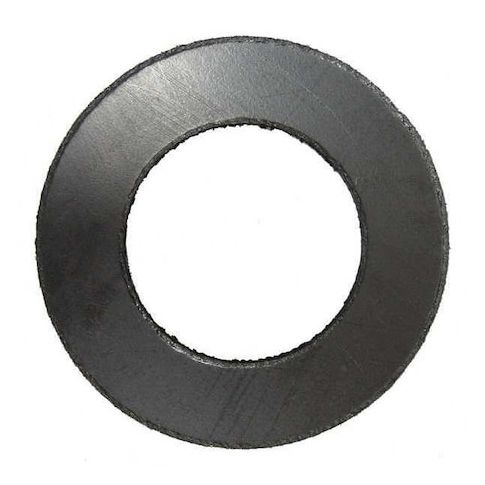

Flange Gasket, Ring, 6 In, Graphite
This high-performance Flange Gasket is designed for demanding applications in the oil and gas, chemical, and power generation industries. Made with durable 316 stainless steel and graphite materials, it provides excellent sealing capabilities and resistance to extreme temperatures (-400°F to 850°F). The gasket's ring design ensures a secure fit on ANSI Class 150 flanges, while its black color and smooth surface make it easy to clean and inspect. Ideal for use in high-pressure and high-temperature environments, this gasket is a reliable choice for applications such as pipeline connections, valve sealing, and equipment maintenance.
Top product features:
- Graphite material provides high temperature resistance
- 316 Stainless Steel insert material offers corrosion resistance
- Ring gasket design allows for easy installation and sealing
Top product applications:
- Pipe flange sealing in high-temperature applications
- Sealing flanges in chemical processing equipment
- Gasket replacement in power generation systems
Ring Flange Gasket, Gasket Material Graphite, Insert Material 316 Stainless Steel, For Pipe Size 6 in, For Flange ANSI Class 150, Binder Material None, Color Black, Inside Diameter 6 5/8 in, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 850 Degrees F, Outside Diameter 8 3/4 in, Thickness 1/16 in, Gasket Type Ring Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Not Rated, Includes Mounting Hardware No, X-Ray Detectable No
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 9.00
- Package Height: 0.10
- Package Weight: 0.09
Product info last updated on March 3, 2026 5:41pm UTC
Category: Sealing and Gasketing
