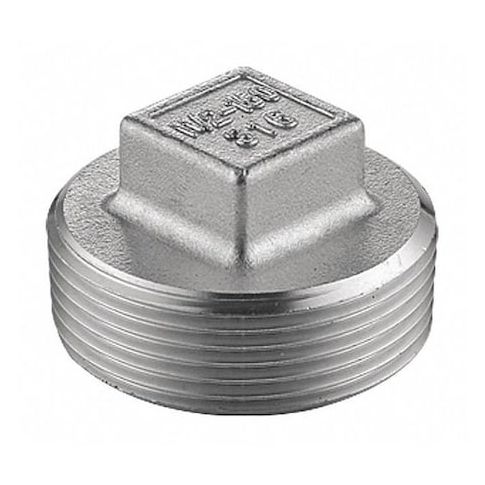

3/4" MNPT 304 SS Square Head Plug MPN:40SQ112N034
Seal and secure your pipes with the ZORO SELECT - 40SQ112N034, a durable 304 stainless steel square head plug. Designed for use with Schedule 40 pipe, this plug provides a reliable seal for threaded pipe, coupling, or fitting connections. The square head offers a flat wrenching surface for easy installation and removal, while the 3/4 inch MNPT connections ensure a secure fit. Ideal for use in high-pressure applications, this plug meets MSS-SP-114 Class 150 pressure ratings and is rated for temperatures between -20 to 350 °F, making it suitable for use in a variety of industries, including chemical processing and power generation.
Top product features:
- Material: 304 Stainless Steel
- Square head plug design with a flat wrenching surface for easy installation and removal
- 3/4 inch MNPT threading for secure connections to threaded pipes, couplings, or fittings
Top product applications:
- Sealing the end of a threaded pipe in a piping system
- Closing or plugging a coupling or fitting in a plumbing or HVAC system
- Blocking the end of a pipe in a laboratory or industrial setting
The ZORO SELECT - 40SQ112N034 is a stainless steel square head plug designed to close or seal the end of a threaded pipe, coupling, or fitting. Material: 304 stainless steel. Rated for Class 150 pressure ratings. The square head offers a flat wrenching surface for installation and removal, and the plug features Male National Pipe Thread (MNPT) connections sized at 3/4 inch nominal pipe size. This fitting is intended for use with Schedule 40 pipe. Operating temperature range: -20 to 350 °F.
Key Features:
- - Material: 304 Stainless Steel
- - Specific Shape: Square Head Plug with a 2-inch square drive style
- - Connection Type: 3/4" MNPT threading with 14 threads per inch
- - Pressure Rating: Class 150
- Maximum operating pressure: 300 psi
- - Maximum steam pressure rating: 150 psi
- - Dimensions: Outside diameter of 3/4 inch and overall length of 30 mm
- - Standards: Material conforms to ASTM-A-351
- threads conform to ASME B1.20.1
- meets MSS-SP-114 Class 150 pressure ratings
- - Temperature Range: Operating temperature range: -20 to 350 °F
- - Does not include pre-applied thread sealant or additional sealing components
- - Non-magnetic
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 8.00
- Package Height: 8.00
- Package Weight: 5.20
