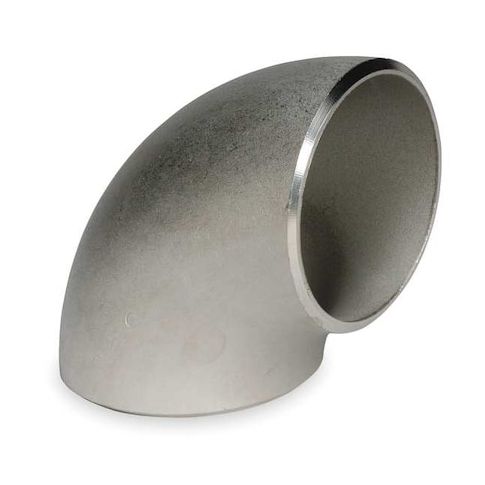

2 in Butt Weld 304L Stainless Steel Short Radius 90° Elbow Schedule 40 MPN:4381016630
Free Shipping
In Stock
The 2 in Butt Weld 304L Stainless Steel Short Radius 90° Elbow is a versatile and compact pipe fitting designed for use in a variety of applications, including chemical processing, food and beverage, and pharmaceutical industries. Constructed from 304L stainless steel, this elbow features a short radius design that allows for tight spaces and reduced material costs. Its butt weld connections ensure a secure and leak-free connection, while its Schedule 40 pipe size and 1-inch centerline radius meet ASTM standards for dimensions and materials. Ideal for use in high-pressure and high-temperature applications, this elbow is a reliable choice for industrial piping systems.
Top product features:
- This elbow connects two pipes at a right angle (90°) with a compact bend radius equal to one nominal pipe diameter.
- This elbow features butt weld connections on both ends for joining pipes.
- This elbow is constructed from 304L stainless steel for corrosion resistance and durability.
Top product applications:
- Industrial Pipe Fittings for High-Temperature Applications
- Chemical Processing Plants for Handling Corrosive Substances
- Medical Equipment Manufacturing for Use in Hygienic Environments
The ZORO SELECT - 4381016630 is a 2-inch, 90 Degree Short Radius Elbow stainless steel pipe fitting designed to connect two pipes at a right angle (90°) with a compact bend radius equal to one nominal pipe diameter. Constructed from 304L stainless steel and finished in silver, this elbow features butt weld connections on both ends, compatible with Schedule 40 pipe. Centerline radius equals one nominal pipe diameter, though it results in higher pressure drop and increased flow turbulence compared to long-radius elbows. It conforms to ASTM A-403/A and standard 403M-88a for dimensions and materials.
Key Features:
- - Material: 304L Stainless Steel, Made from 304L stainless steel.
- - Shape: 90 Degree Short Radius Elbow with a centerline radius equal to one nominal pipe diameter.
- - Connection Type: Butt Weld ends on both Side A and Side B for joining pipes.
- - Pipe Size: 2 inches nominal pipe size on both ends.
- - Pipe Schedule: Schedule 40
- wall thickness conforms to Schedule 40.
- - Overall Length: 4 inches, reflecting the fitting’s compact dimensions.
- - Standards: Manufactured according to ASTM A-403/A and conforms to 403M-88a for material and dimension specifications.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 2.60
- Package Height: 2.60
- Package Weight: 0.90
