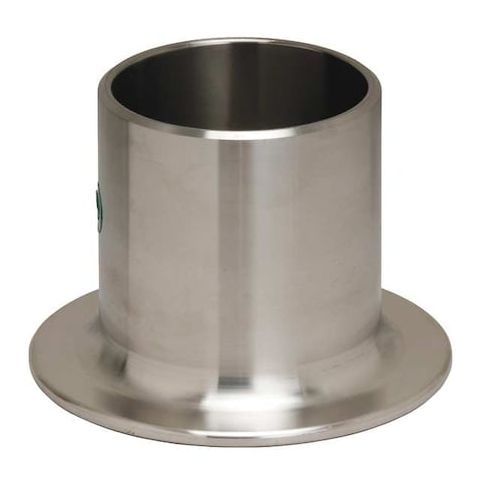

2-1/2" Butt Weld 304L SS Stub End Type A Sch 10 MPN:4381023060
This 2-1/2in Butt Weld 304L SS Stub End Type A Sch 10 is a versatile stainless steel pipe fitting designed for butt-welding to pipes, providing a finished sealing face compatible with loose lap-joint flanges. Suitable for use in Schedule 10 pipe systems, it features corrosion-resistant properties and is rated for maximum pressure of 275 psi at 150°F. Ideal for applications where alignment and disassembly are critical, such as in chemical processing, oil and gas, and power generation industries. Its compact design and reliable performance make it an excellent choice for a wide range of industrial and commercial applications.
Top product features:
- Constructed from 304L stainless steel, featuring corrosion-resistant properties.
- Provides a finished sealing face compatible with a loose lap-joint flange.
- Rated for use within maximum pressure of 275 psi at 150°F.
Top product applications:
- Pipe systems for chemical processing
- Oil and gas industry piping systems
- High-temperature applications in power generation plants
The ZORO SELECT - 4381023060 is a stainless steel Stub End Type A pipe fitting designed for butt-welding to pipes, designed for butt-welding to pipes, providing a finished sealing face compatible with a loose lap-joint flange. This configuration allows the lap-joint flange to slip over and rotate around the stub end, facilitating alignment and disassembly as well as the use of dissimilar flange materials. Constructed from 304L stainless steel, features corrosion-resistant properties, and is rated for Schedule 10 pipe systems with a nominal pipe size of 2 1/2 inches. Rated for use within maximum pressure of 275 psi at 150°F.
- - Shape: Stub End Type A, providing a sealing face for loose lap-joint flanges.
- - Maximum Operating Pressure: Rated for use up to 275 psi at 150°F.
- - Overall Length: 2 1/2 inches.
- - Standards: conform to ASTM standards ASTM-A-403/A and 403M-88a.
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.50
- Package Height: 2.50
- Package Weight: 1.10
