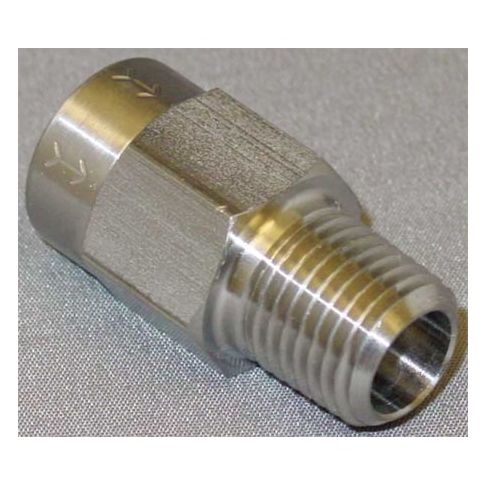

1/4" FNPT x MNPT Stainless Steel Piston Spring Check Valve MPN:CHK SST 410-4F4M-F
Free Shipping
In Stock
The GoVets Select 1/4in FNPT x MNPT Stainless Steel Piston Spring Check Valve is a reliable and durable solution for various industrial applications. Suitable for use in both horizontal and vertical orientations, this valve ensures one-way flow while preventing backflow and pressure loss. Its stainless steel construction and Viton seal withstand temperatures from -20°F to 180°F and pressures up to 500 psi, making it ideal for water-based systems. Perfect for use in laboratories, breweries, and food processing facilities, this valve ensures consistent and safe fluid flow, reducing the risk of contamination and equipment damage.
Top product features:
- The product has a single flow design.
- It has an inline piston mechanism and body design.
- It has a stainless steel seat and spring.
Top product applications:
- Drainback Systems
- Steam Traps
- Industrial Process Control
This Zoro Select 410 series piston spring check valve is an inline, single-flow check valve for general-purpose air and fluid service. It uses a stainless steel spring-loaded piston to allow one-way flow and closes at a 1 psi cracking pressure for one-way flow applications in piping systems. The valve has a stainless steel body with 1/4 in. FNPT x MNPT NPT connections and can be mounted horizontally or vertically.
Key Features:
- Piston spring check design: Inline piston mechanism with single-flow design.
- Connection size and type: 1/4 in. FNPT x MNPT with female side 1 and male side 2 NPT connections.
- Material construction: Stainless steel body, check mechanism, seat, and spring.
- Seal material: Viton/FKM seal.
- Pressure rating: 500 psi maximum operating and water pressure.
- Cracking pressure: 1 psi.
- Temperature range: -20 degrees F to 180 degrees F.
- Mounting orientation: Horizontal or vertical.
- Flow coefficient: Cv 0.6.
- Dimensions: 1.38 in. overall length, 0.69 in. width, 19/32 in. overall height, 19/32 in. hex size.
- Standards: UL, UR.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 0.39
