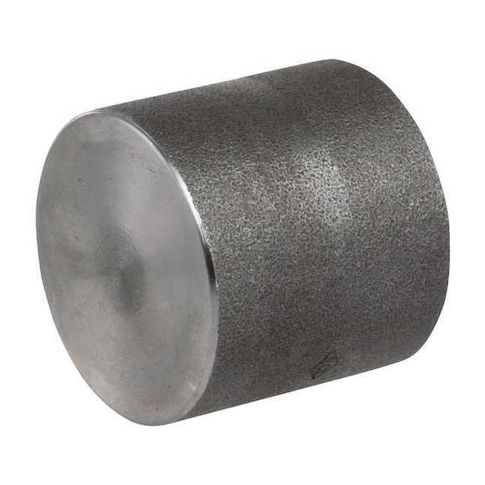

1 in FNPT Stainless Steel Pipe Cap, 316L, Class 3000, 3000 psi MPN:4307001116

• The ZORO SELECT - 4307001116 is a stainless steel pipe cap designed to close and seal the end of a pipe, providing protection and preventing flow. It features a Class 3000 pressure rating, making it suitable for line termination, pressure testing, and piping systems within specified parameters. Constructed from 316L stainless steel with threads conforming to ASME B1.20.1 NPT and compliance with ASTM A182 and ASME B16.11 standards. Its 1-inch nominal size and 1-3/4 inch outside diameter allow for compatibility with standard pipe sizes and schedules, supporting high-pressure applications up to 3000 psi at 100°F.

  Key Features:

  • - Material Grade: 316L Stainless Steel, offering corrosion resistance and durability.
  • - Pressure Rating: Class 3000, rated for up to 3000 psi @ 100°F.
  • - Connection Type: FNPT (Female National Pipe Thread), ensuring standardized threaded connection.
  • - Max Steam Pressure: 2810 psi @ 350°F, suitable for steam and high-pressure environments.
  • - Designed for use with pipes of 1 inch nominal size and outside diameter of 1-3/4 inches. Rated for applications up to 3000 psi at 100°F.
  • - Overall Length: 1 5/8 inches, indicating the fitting's size and fitment span.
  • - Standards Compliance: Threads conform to ASME B1.20.1 NPT
  • materials conform to ASTM A182 and ASME B16.11.
