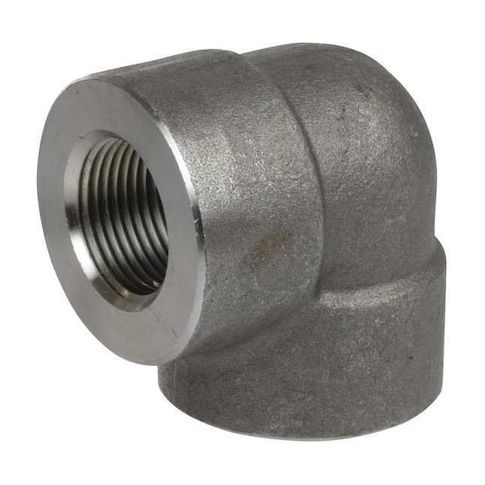

90° Elbow, 316 Stainless Steel, 1/4 in FNPT, Class 3000, ASTM A182, ANSI B16.11 MPN:2TY87
Free Shipping
In Stock
Upgrade your piping system with the ZORO SELECT - 2TY87, a high-quality 90-degree elbow fitting made from durable 316 stainless steel. Perfect for applications where a right-angle change in flow direction is required, this fitting is designed for use in high-pressure environments, supporting up to 3000 psi at 100°F and steam pressure up to 2500 psi at 350°F. Ideal for use in chemical processing, oil and gas, and power generation industries, this fitting offers excellent corrosion resistance and is easy to install. Its compact design and female NPT threads make it a versatile and reliable choice for a wide range of piping configurations.
Top product features:
- Material: 316 stainless steel
- Connection type: Female NPT threads on both ends
- Pressure rating: Class 3000, supporting up to 3000 psi @ 100°F
Top product applications:
- Water Supply Lines
- Steam Distribution Systems
- Chemical Processing Plants
The ZORO SELECT - 2TY87 is a 90-degree elbow stainless steel pipe fitting designed to connect two pipes with a right-angle (90°) change in flow direction. Material: 316 stainless steel
- rated for service up to 3000 psi at 100°F and steam pressure up to 2500 psi at 350°F. This fitting is threaded on both ends with female National Pipe Thread Tapered (FNPT) connections sized at 1/4 inch nominal pipe size. It is rated for a maximum pressure of 3000 psi at 100°F and a maximum steam pressure of 2500 psi at 350°F, conforming to ASTM-A-182 for materials, ANSI/ASME B1.20.1 for threads, and ASME B16.11 standards. Key Features:
- - Material: 316 stainless steel
- - Connection type: Female NPT threads on both ends
- - Nominal pipe size: 1/4 inch on Side A and Side B
- - Pressure rating: Class 3000, supporting up to 3000 psi @ 100°F
- - Steam pressure rating: 2500 psi @ 350°F
- - Includes no pre-applied thread sealant or separate seals
- - Compliance: Meets ASTM-A-182
- threads per ANSI/ASME B1.20.1
- fitting standard ASME B16.11
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.48
- Package Width: 0.98
- Package Height: 1.48
- Package Weight: 0.31
