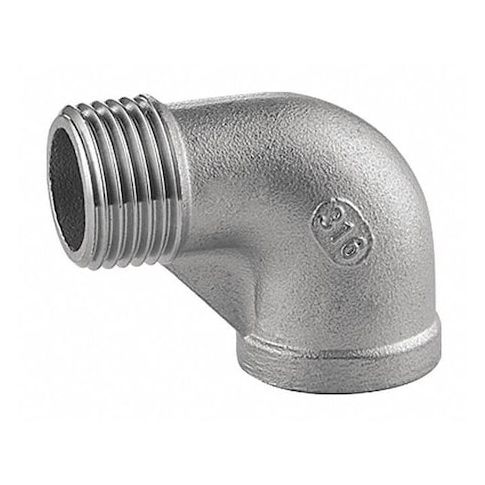

2" MNPT x FNPT 316 SS Street Elbow MPN:60SE113N020
This 2-inch 316 stainless steel street elbow is a versatile and durable pipe fitting designed to change the flow direction by 90 degrees. Ideal for use in applications involving air, natural gas, non-potable water, oil, potable water, and steam, this fitting offers a reliable and leak-resistant connection between pipes. Constructed from high-quality 316 stainless steel, it provides excellent corrosion resistance and meets ANSI standards for Class 150 pressure ratings. Suitable for use in various industries, including HVAC, plumbing, and industrial piping, this street elbow is a valuable addition to any piping system.
Top product features:
- Changes the flow direction by 90 degrees
- Constructed from 316 stainless steel for media compatibility with air, natural gas, non-potable water, oil, potable water, and steam
- Pressure-rated to Class 150 standards with a maximum operating pressure of 300 psi
Top product applications:
- Gas Line Installation
- Steam Pipe Fitting
- Water Supply System
The ZORO SELECT - 60SE113N020 is a 90 Degree Street Elbow stainless steel pipe fitting designed to change the flow direction by 90 degrees. It features one male and one female threaded end, allowing direct connection between a pipe and another fitting without the need for a short nipple. Constructed from 316 stainless steel, this fitting offers media compatibility: air
- natural gas
- non-potable water
- oil
- potable water
- steam. It is pressure-rated to Class 150 standards and supports maximum operating pressure: 300 psi, with a maximum steam pressure rating: 150 psi. Key Features:
- - Pipe fitting material: 316 Stainless Steel
- - Pressure rating: Class 150, maximum operating pressure: 300 psi
- - Connection types: Male NPT (Side A) x Female NPT (Side B)
- - Nominal pipe size: 2 inches for both ends
- - Thread size: 11 threads per inch on both male and female sides
- - Pipe schedule compatibility: Schedule 40
- - Media compatibility: air
- natural gas
- non-potable water
- oil
- potable water
- steam
- - Color: Silver
- - Standards compliance: Meets ANSI Standards B1.20.1 and Class 150
- - Does not include pre-applied thread sealant or additional seals
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 8.00
- Package Height: 8.00
- Package Weight: 19.50
