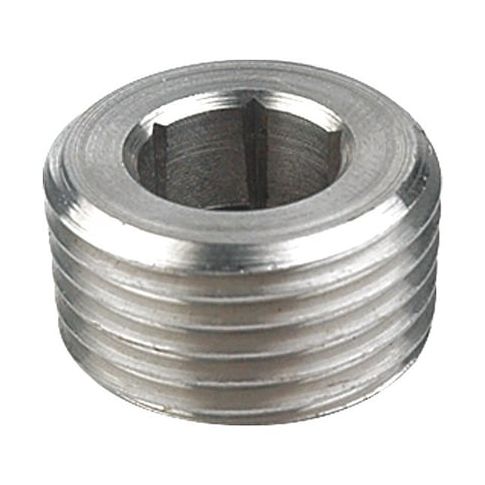

Hex Socket Plug, 3/8 in, 316L Stainless Steel, MNPT, Class 150, 5/16 in Hex MPN:60SP112N038
This 316L stainless steel hex socket plug is designed to effectively close off the end of a pipe, fitting, or port in Class 150 pressure-rated systems. Its corrosion-resistant material ensures reliable performance in extreme temperatures, ranging from -60 to 450 F. The plug's internal hex recess allows for easy tightening or removal with a hex key or Allen wrench. Suitable for applications in the chemical, oil, and gas industries, this plug provides a secure seal under Class 150 pressure-rated conditions, making it an ideal solution for industries requiring high-pressure and high-temperature resistance.
Top product features:
- Corrosion resistance is provided by the 316L stainless steel material.
- The plug seals under Class 150 pressure-rated conditions.
- An internal hexagonal recess allows for tightening or removal with a hex key or Allen wrench.
Top product applications:
- Drain Plugs for Marine Equipment
- Pressure Relief Valves for Industrial Systems
- Pipe Plugs for Laboratory Equipment
The ZORO SELECT - 60SP112N038 is a stainless steel hex socket plug designed to close off the end of a pipe, fitting, or port. Made from 316L stainless steel, it provides corrosion resistance
- operating temperature range: -60 to 450 F, and seals under Class 150 pressure-rated conditions. Featuring an internal hexagonal recess for tightening or removal with a hex key or Allen wrench, this plug is compatible with Class 150 pressure-rated systems and has a nominal pipe size of 3/8 inch. Key Features:
- - Material: 316L stainless steel, providing corrosion resistance.
- - Fitting Shape: Hex socket plug with male threading.
- - Connection Type: Male National Pipe Thread (MNPT), 3/8" thread size with 18 TPI.
- - Pressure Class: Class 150, maximum operating pressure of 300 psi and max steam pressure of 150 psi.
- - Temperature Range: -60 to 450 F.
- - Hex Size: 5/16 inch across flats for wrenching.
- - Overall Length: Approximately 12.7 mm.
- - Standards: Conforms to ASTM A351 specifications.
- - Does not include pre-applied thread sealant or additional seals.
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 0.70
- Package Weight: 0.04
