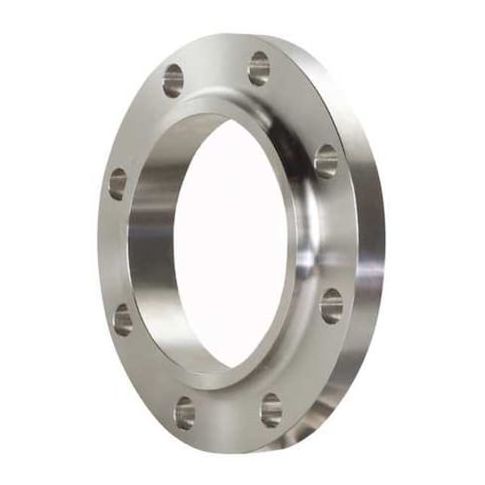

4" Socket Weld SS Socket Weld Flange Sch 40 MPN:4381005670
The ZORO SELECT 4381005670 is a high-quality stainless steel socket weld flange designed for demanding applications. Rated for operation up to 720 psi, it features a recessed socket for secure pipe attachment and is forged from 316 stainless steel for exceptional strength and corrosion resistance. Suitable for use in steam and high-pressure systems, this flange offers good alignment and is compliant with ASTM-SA182 and ANSI B16.5 standards. Ideal for industries such as power generation, oil and gas, and chemical processing, this flange provides a reliable and durable solution for critical piping systems, ensuring smooth operation and minimizing downtime.
Top product features:
- Forged 316 Stainless Steel for strength and corrosion resistance
- Socket Weld connection for secure pipe attachment
- Raised Face connection surface for improved alignment and sealing
Top product applications:
- Industrial pipe fitting applications in high-pressure environments
- Chemical processing plants for their corrosion-resistant properties
- Oil and gas refineries for their strength and durability
The ZORO SELECT 4381005670 is a stainless steel socket weld flange rated for operation up to 720 psi. It features a recessed socket to accept pipe ends, which are secured with a fillet weld around the hub. Nominal Pipe Size: 4 in, it offers good alignment.
- - Material: Forged 316 Stainless Steel for strength and corrosion resistance
- - Connection Type: Socket Weld for pipe attachment
- - Pressure Ratings: Max. pressure of 720 psi
- Max. steam pressure of 300 psi
- Maximum operating pressure of 720 psi
- - Flange Dimensions: Outside diameter 10 in
- Thickness 1 1/4 in
- - Bolt Circle Diameter: 7 7/8 in with 8 bolt holes
- - Bolt Hole Diameter: 7/8 in and overall hole count of 8
- - Flange Outside Diameter: 10 in
- - Overall Length: 1 7/8 in
- - Standards: ASTM-SA182
- ANSI B16.5
- - Class: 300
- - Nominal Pipe Size: 4 in
- - Fitting Schedule/Class: Class 300
- - Connection Surface: Raised Face
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 5.40
- Package Weight: 25.56
