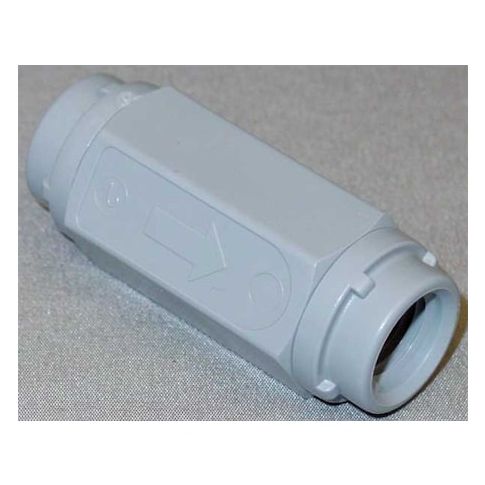

1/4" FNPT Gray PVC Ball Cone Spring Check Valve MPN:PVC CHK 426-4F4F-B
Free Shipping
In Stock
The 1/4in FNPT Gray PVC Ball Cone Spring Check Valve from GoVets Select is a reliable and versatile solution for a variety of applications. Ideal for use in water treatment, chemical processing, and HVAC systems, this valve ensures full flow while preventing backflow and contamination. Its compact design and stainless steel spring provide long-lasting performance in temperatures up to 140°F and pressures up to 125 psi. With a cracking pressure of just 1 psi, this valve is perfect for applications where precise control is necessary. Its compact size and lightweight design make it easy to install and maintain.
Top product features:
- Flow Design Single
- Inline Ball Cone Mechanism
- Full Flow Valves Yes
Top product applications:
- Water Supply Systems
- Steam Traps
- Drainage Systems
ZORO SELECT 426 series ball cone spring check valve is an inline, single-flow check valve with a PVC body and 1/4 in FNPT x FNPT female connections. It uses a spring-loaded ball check mechanism intended to permit flow in one direction and restrict reverse flow. This valve is specified for general-purpose chemical service within listed pressure and temperature ratings and has a full-flow designation and listed dimensions of 2.99 in overall length, 1 in overall height, and 0.88 in width.
Key Features:
- Valve type: Ball cone spring check valve with inline body design.
- Body material: PVC.
- Check mechanism: Ball with stainless steel components.
- Connections: 1/4 in FNPT x FNPT, female on both ends.
- Cracking pressure: 1 psi.
- Pressure rating: 125 psi maximum operating pressure
- 125 psi maximum water pressure.
- Temperature range: -20 degrees F to 140 degrees F.
- Seal material: Buna-N
- seat material: PVC.
- Spring material: Hastelloy.
- Mounting orientation: Horizontal or vertical.
- Body style: Inline
- full-flow designation: Yes.
- Standards: NSF 42.
- Dimensions: 2.99 in overall length, 1 in overall height, 0.88 in width, 2.20 in body length, 1 in hex size.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.00
- Package Height: 1.00
- Package Weight: 0.28
