TL Bushing, 3020, 1 7/16 in B Dia, 2 in L MPN:3020X1-7/16
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G110985430

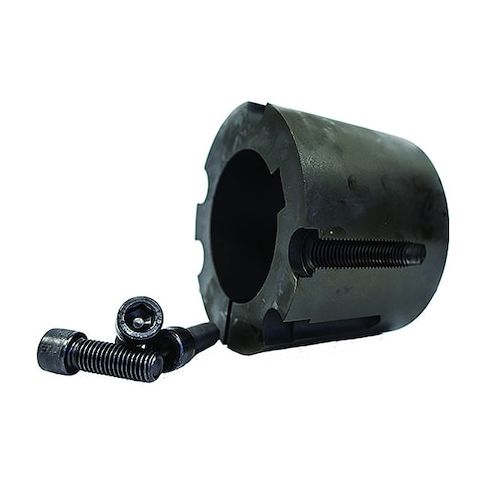

TL Bushing, 3020, 1 7/16 in B Dia, 2 in L
The GoVets Select TL Bushing is a high-performance component designed for keyed shaft applications. Its 1 7/16 in bore diameter and 2 in length provide a secure fit, while the tapered lock design ensures a strong and reliable connection. The bushing's steel construction and 24,000 in-lb fastener tightening torque capacity make it suitable for demanding industrial and commercial use. Ideal for applications such as machinery, equipment, and power transmission systems, this bushing offers improved efficiency, reduced maintenance, and increased productivity. Its compact size and easy installation make it a valuable addition to any mechanical system.
Top product features:
- Taper Lock Bushing design allows for secure attachment to a keyed shaft.
- Includes two set screws for added stability and secure fastening.
- Keyway height of 3/16 in and keyway width of 3/8 in accommodate standard shaft keys.
Top product applications:
- Power transmission systems
- Machine tool applications
- Aerospace equipment assembly
Taper Lock Bushing, Bushing Type Taper Lock, Bore Bushing Series 3020, Bore Diameter 1 7/16 in, Length 2 in, Bolt Circle Diameter 4 in, Bolt Size Not Applicable, System of Measurement Inch, Bushing Diameter Not Applicable, Fastener Tightening Torque Capacity 24,000 in-lb, Flange Type Flangeless, Flange Width Not Applicable, For Shaft Type Keyed, Includes (2) Set Screws, Keyway Height 3/16 in, Keyway Width 3/8 in, Length Less Flange Not Applicable, Material Steel, Overall Diameter 4.25 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.50
- Package Height: 2.30
- Package Weight: 6.40
Product info last updated on February 10, 2026 6:25pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
