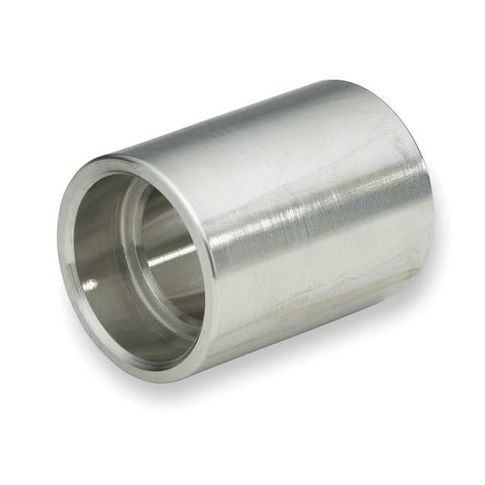

2 in 304L Stainless Steel Socket Weld Coupling, Class 3000, Full Coupling MPN:4307004278

• The ZORO SELECT - 4307004278 is a stainless steel full coupling designed to join two 2-inch pipes or tubes in a straight line. It features female socket weld connections on both ends, maintaining the pipe's nominal diameter without reducing the internal bore. Made from 304 stainless steel

• corrosion resistance and mechanical strength characteristics consistent with 304 stainless steel
• rated for Class 3000 pressure (3,000 psi) and maximum steam pressure rating 2,810 psi @ 350 °F. Rated for Class 3000 pressure
• conforms to ASME B16.11 and ASTM A182
• ISO 9001:2008 reference omitted.

  Key Features:


  • - Material grade: 304 stainless steel
  • - Connection type: socket weld, female gender on both ends
  • - Nominal pipe size: 2 in with 2 7/8 in outside diameter
  • - Pressure class: Class 3000, maximum pressure of 3,000 psi
  • - Maximum steam pressure rating: 2,810 psi @ 350 °F
  • - Overall length: 2 in
  • - Specific shape: full coupling to provide a full-bore connection
  • - Color: silver
