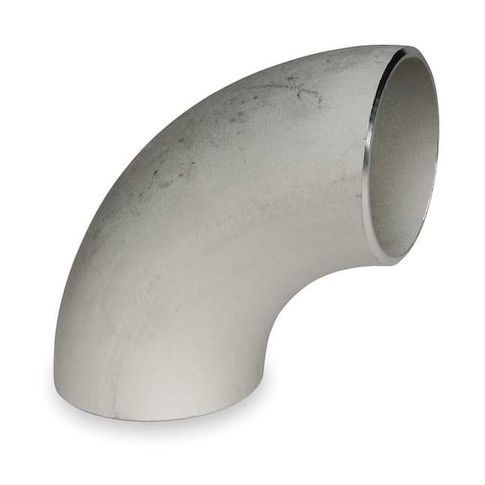

2-1/2 in Butt Weld 304L Stainless Steel Long Radius 90° Elbow Schedule 10 MPN:4381010860
This 2-1/2 in Butt Weld 304L Stainless Steel Long Radius 90° Elbow is a versatile and durable piping component suitable for a variety of applications, including chemical processing, food and beverage, and pharmaceutical industries. Made from corrosion-resistant 304L stainless steel, it provides long-lasting performance in harsh environments and meets or exceeds industry standards. Its butt weld connections ensure a secure and leak-free connection, while its long radius design minimizes pressure drop and promotes smooth fluid flow. This elbow is ideal for use in Schedule 10 piping systems and is rated for 275 psi at 150°F.
Top product features:
- It connects same-size pipes with a nominal size of 2 1/2 inches on both ends.
- It provides butt weld connections on both sides.
- It offers corrosion resistance typical of 304L stainless steel.
Top product applications:
- Chemical Processing: The 2-1/2 in Butt Weld 304L Stainless Steel Long Radius 90° Elbow Schedule 10 can be used in chemical processing applications where resistance to corrosion is required.
- Food Processing: The elbow's 304L stainless steel material and silver finish make it suitable for use in food processing applications where sanitation and cleanliness are crucial.
- Petrochemical Industry: The 90-degree elbow's ability to handle high pressures and its corrosion-resistant properties make it a suitable choice for use in the petrochemical industry.
The ZORO SELECT - 4381010860 is a 90-degree elbow with a centerline radius equal to 1.5 times the pipe nominal diameter. Made from 304L stainless steel and finished in silver, it connects same-size pipes with a nominal size of 2 1/2 inches on both ends. The fitting utilizes butt weld connections on both sides and is intended for Schedule 10 piping. It provides corrosion resistance typical of 304L stainless steel and is rated for 275 psi at 150°F for Schedule 10 piping.
Key Features:
- - Material: 304L Stainless Steel
- - Shape: 90 Degree Long Radius Elbow
- - Connection Type: Butt Weld on both Side A and Side B
- - Nominal Pipe Size: 2 1/2 inches for both ends
- - Pipe Schedule: Schedule 10
- - Maximum Operating Pressure: 275 psi at 150°F
- - Overall Length: 7 1/2 inches
- - Color: Silver
- - Conforms to ASTM-A-403/A and standard 403M-88a dimensions and materials
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.30
- Package Width: 6.00
- Package Height: 3.50
- Package Weight: 3.80
